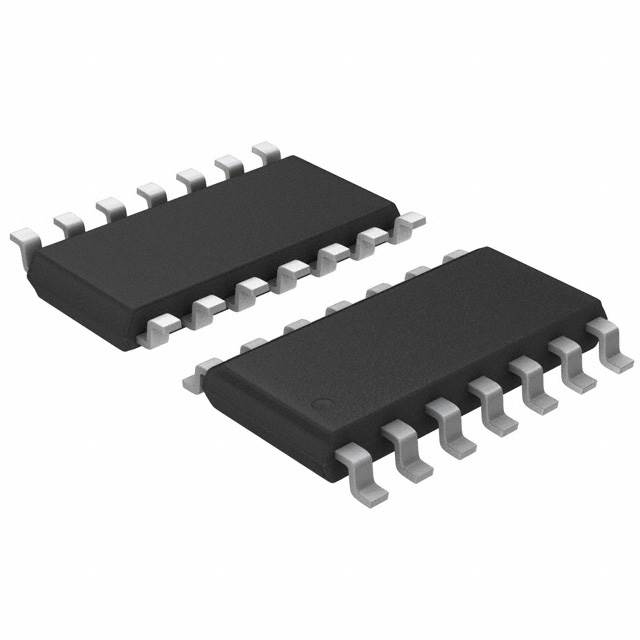

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | UC3843BDR2G |
| Manufacturer: | Sanyo Semiconductor/ON Semiconductor |
| Part of Description: | IC REG CTRLR FLYBACK 14SOIC |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 8101 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | - |
| Package | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® |
| Part Status | Active |
| Output Type | Transistor Driver |
| Function | Step-Up, Step-Up/Step-Down |
| Output Configuration | Positive, Isolation Capable |
| Topology | Boost, Flyback |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 7.6V ~ 30V |
| Frequency - Switching | Up to 500kHz |
| Duty Cycle (Max) | 96% |
| Synchronous Rectifier | No |
| Clock Sync | No |
| Serial Interfaces | - |
| Control Features | Frequency Control |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 14-SOIC |
Stock Status: 8101
Minimum: 1
Price: $0.62000
