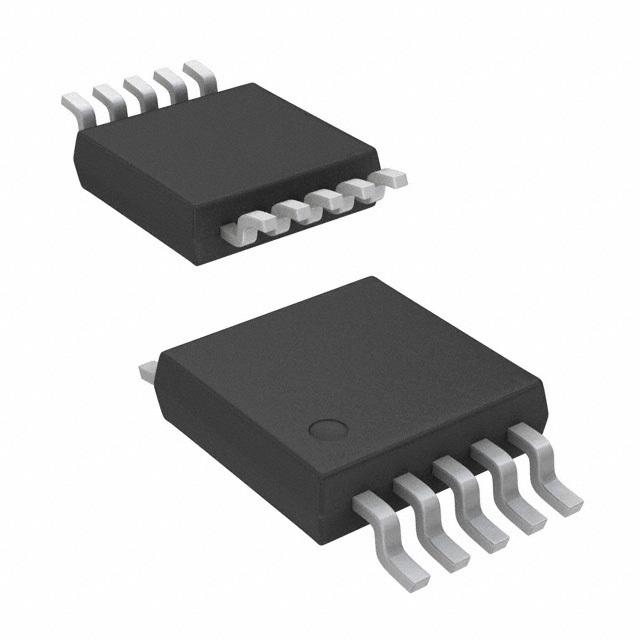

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | ISL6745AAUZ-T |
| Manufacturer: | Intersil (Renesas Electronics America) |
| Part of Description: | IC REG CTRLR MULT TOP 10MSOP |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 2024 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | - |
| Package | Tape & Reel (TR) |
| Part Status | Active |
| Output Type | Transistor Driver |
| Function | Step-Up/Step-Down |
| Output Configuration | Positive, Isolation Capable |
| Topology | Full-Bridge, Half-Bridge |
| Number of Outputs | 2 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 9V ~ 16V |
| Frequency - Switching | Up to 1MHz |
| Duty Cycle (Max) | 99% |
| Synchronous Rectifier | No |
| Clock Sync | No |
| Serial Interfaces | - |
| Control Features | Frequency Control, Soft Start |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 10-MSOP |
Stock Status: 2024
Minimum: 1
Price: $2.52170
