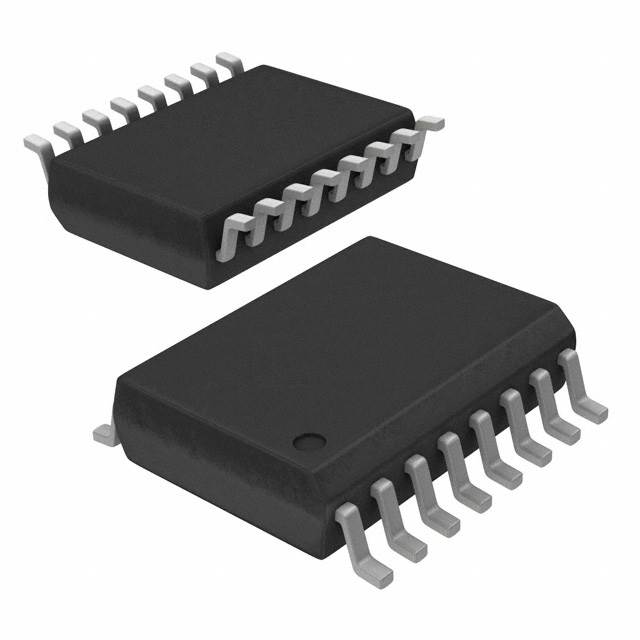

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | UC3824DW |
| Manufacturer: | Rochester Electronics |
| Part of Description: | UC3824 HIGH SPEED PWM CONTROLLER |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 429 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | - |
| Package | Bulk |
| Part Status | Active |
| Output Type | Transistor Driver |
| Function | Step-Up, Step-Down |
| Output Configuration | Positive |
| Topology | Buck, Boost |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 8.4V ~ 30V |
| Frequency - Switching | 340kHz ~ 460kHz |
| Duty Cycle (Max) | 85% |
| Synchronous Rectifier | No |
| Clock Sync | No |
| Serial Interfaces | - |
| Control Features | Current Limit, Enable, Frequency Control, Ramp, Soft Start |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 16-SOIC |
Stock Status: 429
Minimum: 1
Price: $12.65000
