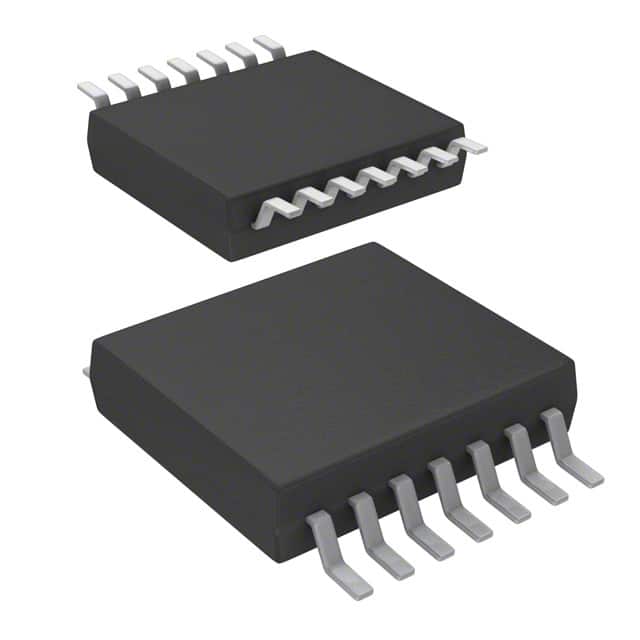

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | UCC28230PW |
| Manufacturer: | Rochester Electronics |
| Part of Description: | UCC28230 ADVANCED PWM CONTROLLER |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 2707 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | - |
| Package | Bulk |
| Part Status | Active |
| Output Type | Transistor Driver |
| Function | Step-Up/Step-Down |
| Output Configuration | Positive |
| Topology | Full-Bridge, Half-Bridge, Push-Pull |
| Number of Outputs | 4 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 7V ~ 17V |
| Frequency - Switching | 100kHz ~ 550kHz |
| Duty Cycle (Max) | - |
| Synchronous Rectifier | No |
| Clock Sync | No |
| Serial Interfaces | - |
| Control Features | Frequency Control, Soft Start |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 14-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 14-TSSOP |
Stock Status: 2707
Minimum: 1
Price: $1.88000
