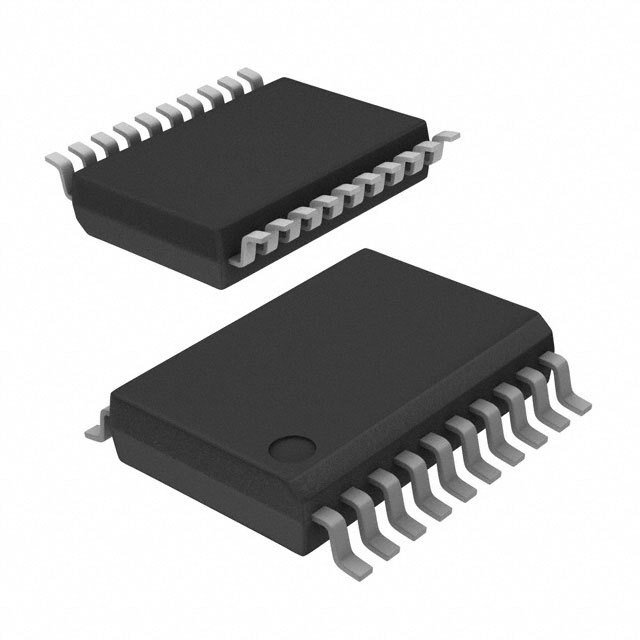

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | LTC1922EG-1#TRPBF |
| Manufacturer: | XinYun Electronics |
| Part of Description: | IC REG CTRLR FULL-BRIDGE 20SSOP |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 711 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | - |
| Package | Tape & Reel (TR) |
| Part Status | Active |
| Output Type | Transistor Driver |
| Function | Step-Up/Step-Down |
| Output Configuration | Positive, Isolation Capable |
| Topology | Full-Bridge |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 3.8V ~ 10.3V |
| Frequency - Switching | Up to 1MHz |
| Duty Cycle (Max) | 99% |
| Synchronous Rectifier | Yes |
| Clock Sync | Yes |
| Serial Interfaces | - |
| Control Features | Ramp, Soft Start |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 20-SSOP (0.209", 5.30mm Width) |
| Supplier Device Package | 20-SSOP |
Stock Status: 711
Minimum: 1
Price: $7.50013
