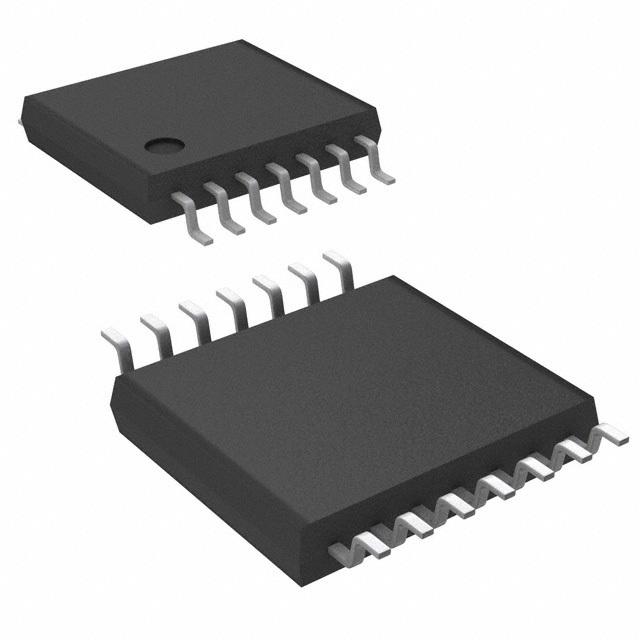

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | ADG1204YRUZ-REEL7 |
| Manufacturer: | XinYun Electronics |
| Part of Description: | IC MULTIPLEXER 4X1 14TSSOP |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 813 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | - |
| Package | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® |
| Part Status | Active |
| Switch Circuit | SP4T |
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 190Ohm |
| Channel-to-Channel Matching (ΔRon) | 6Ohm |
| Voltage - Supply, Single (V+) | 12V |
| Voltage - Supply, Dual (V±) | ±15V |
| Switch Time (Ton, Toff) (Max) | 85ns, 110ns |
| -3db Bandwidth | 800MHz |
| Charge Injection | -0.7pC |
| Channel Capacitance (CS(off), CD(off)) | 1.5pF, 4.2pF |
| Current - Leakage (IS(off)) (Max) | 100pA |
| Crosstalk | -80dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 14-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 14-TSSOP |
Stock Status: 813
Minimum: 1
Price: $6.38000
