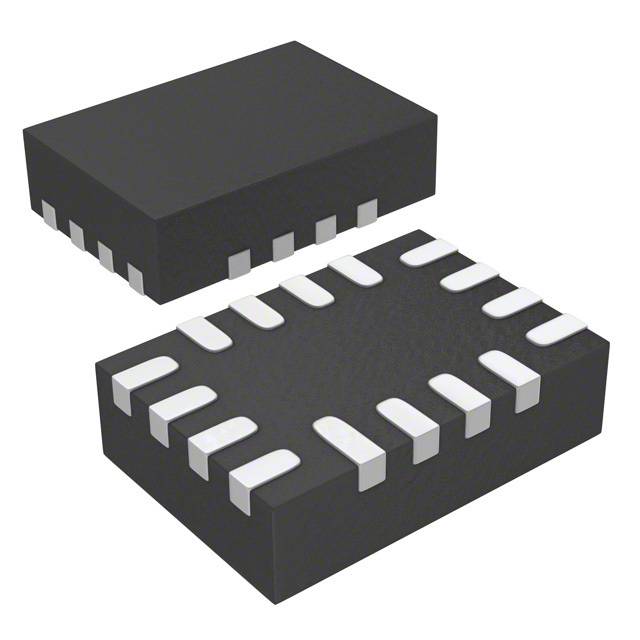

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | DG4053AEN-T1-E4 |
| Manufacturer: | Vishay / Siliconix |
| Part of Description: | IC MUX TRIPLE 2CHAN 16-MINIQFN |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 2391 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | - |
| Package | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® |
| Part Status | Obsolete |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 3 |
| On-State Resistance (Max) | 100Ohm |
| Channel-to-Channel Matching (ΔRon) | 3Ohm |
| Voltage - Supply, Single (V+) | 2.7V ~ 12V |
| Voltage - Supply, Dual (V±) | ±2.5V ~ 5V |
| Switch Time (Ton, Toff) (Max) | 108ns, 92ns |
| -3db Bandwidth | 730MHz |
| Charge Injection | 0.25pC |
| Channel Capacitance (CS(off), CD(off)) | 3pF, 4pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Crosstalk | -67dB @ 10MHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-WFQFN |
| Supplier Device Package | 16-miniQFN (1.8x2.6) |
Stock Status: 2391
Minimum: 1
Call for price or submit a RFQ
