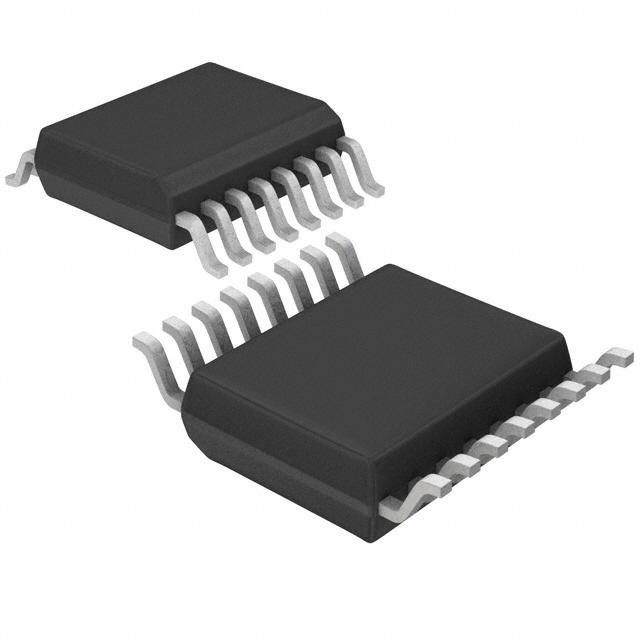

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | MAX4690CAE |
| Manufacturer: | Maxim Integrated |
| Part of Description: | IC SW DUAL 1.25 OHM SPST 16-SSOP |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 1378 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | - |
| Package | Tube |
| Part Status | Obsolete |
| Switch Circuit | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 1.25Ohm |
| Channel-to-Channel Matching (ΔRon) | 90mOhm |
| Voltage - Supply, Single (V+) | 4.5V ~ 36V |
| Voltage - Supply, Dual (V±) | ±4.5V ~ 20V |
| Switch Time (Ton, Toff) (Max) | 275ns, 175ns |
| -3db Bandwidth | - |
| Charge Injection | 550pC |
| Channel Capacitance (CS(off), CD(off)) | 115pF, 115pF |
| Current - Leakage (IS(off)) (Max) | 500pA |
| Crosstalk | -65dB @ 1MHz |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-SSOP (0.209", 5.30mm Width) |
| Supplier Device Package | 16-SSOP |
Stock Status: 1378
Minimum: 1
Call for price or submit a RFQ
