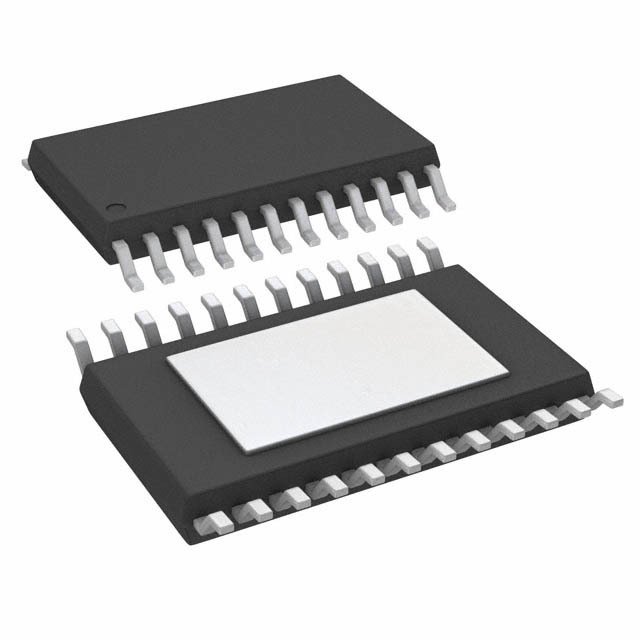

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | AD5422AREZ-REEL |
| Manufacturer: | Linear Technology (Analog Devices, Inc.) |
| Part of Description: | IC DAC 16BIT V OR A-OUT 24TSSOP |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 417 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | - |
| Package | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® |
| Part Status | Active |
| Number of Bits | 16 |
| Number of D/A Converters | 1 |
| Settling Time | 25µs (V), 40µs (A) (Typ) |
| Output Type | Voltage or Current - Buffered |
| Differential Output | No |
| Data Interface | SPI, DSP |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 10.8V ~ 40V, -3V ~ 26.4V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| INL/DNL (LSB) | -, ±1.3 (Max) |
| Architecture | R-2R |
| Operating Temperature | -40°C ~ 105°C |
| Package / Case | 24-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| Supplier Device Package | 24-TSSOP-EP |
| Mounting Type | Surface Mount |
Stock Status: 417
Minimum: 1
Price: $13.62000
