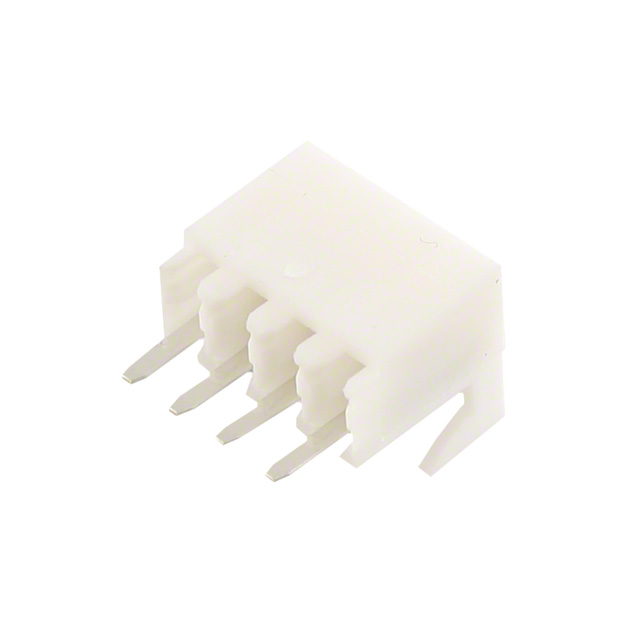

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | 0022182041 |
| Manufacturer: | Woodhead - Molex |
| Part of Description: | CONN RCPT 4POS 0.1 GOLD PCB |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 9139 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | KK254, 4455 |
| Package | Tray |
| Part Status | Active |
| Connector Type | Receptacle |
| Contact Type | Non-Gendered |
| Style | Board to Board or Cable |
| Number of Positions | 4 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 15.0µin (0.38µm) |
| Insulation Color | White |
| Insulation Height | 0.311" (7.90mm) |
| Contact Length - Post | 0.132" (3.35mm) |
| Operating Temperature | -40°C ~ 80°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Tin |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | Board Hooks |
| Current Rating (Amps) | 2.5A |
| Voltage Rating | 250VAC |
Stock Status: 9139
Minimum: 1
Price: $0.55000
