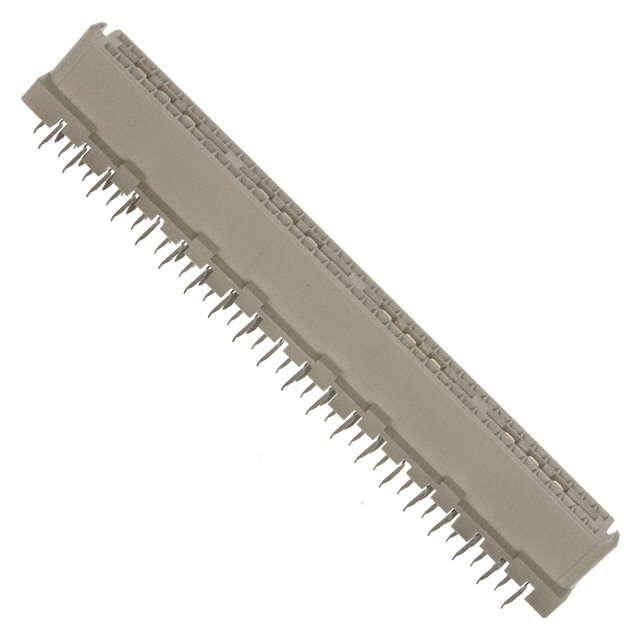

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | 536279-3 |
| Manufacturer: | TE Connectivity AMP Connectors |
| Part of Description: | CONN RCPT 80POS 0.05 GOLD PCB |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 2416 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | Micro-Strip |
| Package | Tray |
| Part Status | Obsolete |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Style | Board to Board |
| Number of Positions | 80 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.050" (1.27mm) |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Insulation Color | Natural |
| Insulation Height | 0.320" (8.13mm) |
| Contact Length - Post | 0.095" (2.41mm) |
| Operating Temperature | -65°C ~ 125°C |
| Material Flammability Rating | - |
| Contact Finish - Post | Tin-Lead |
| Mated Stacking Heights | 10.92mm, 17.78mm, 18.75mm |
| Ingress Protection | - |
| Features | Board Guide, Ground Bus (Plane) |
| Current Rating (Amps) | - |
| Voltage Rating | 30VAC |
Stock Status: 2416
Minimum: 1
Call for price or submit a RFQ
