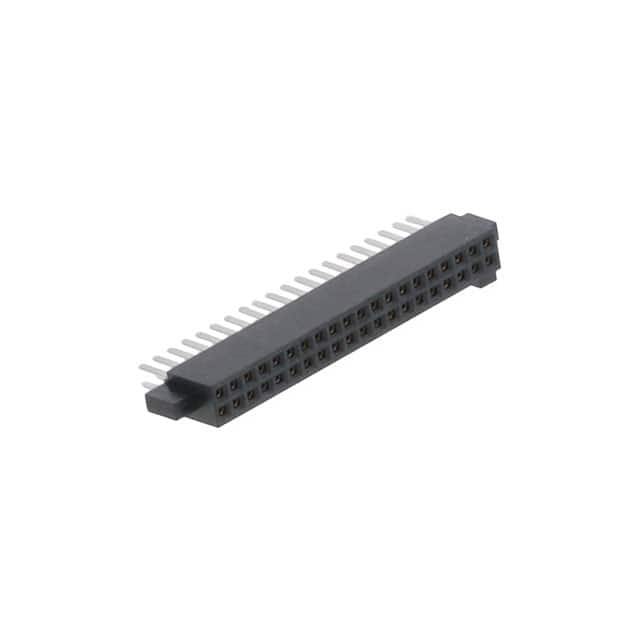

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | SFC-120-T1-F-D |
| Manufacturer: | Samtec, Inc. |
| Part of Description: | CONN RCPT 40POS 0.05 GOLD PCB |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 1030 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | Tiger Eye™ SFC |
| Package | Tube |
| Part Status | Active |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Style | Board to Board or Cable |
| Number of Positions | 40 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.050" (1.27mm) |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.050" (1.27mm) |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 3.00µin (0.076µm) |
| Insulation Color | Black |
| Insulation Height | 0.180" (4.57mm) |
| Contact Length - Post | 0.120" (3.05mm) |
| Operating Temperature | -55°C ~ 125°C |
| Material Flammability Rating | - |
| Contact Finish - Post | Tin |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | - |
| Current Rating (Amps) | 3.1A per Contact |
| Voltage Rating | 350VAC |
Stock Status: 1030
Minimum: 1
Price: $5.10000
