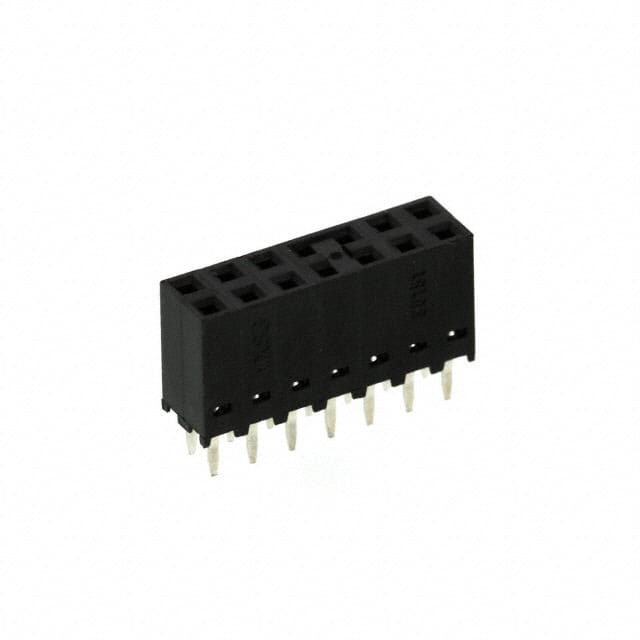

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | 0901512314 |
| Manufacturer: | Woodhead - Molex |
| Part of Description: | CONN RCPT 14POS 0.1 GOLD PCB |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 1755 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | C-Grid III 90151 |
| Package | Tube |
| Part Status | Active |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Style | Board to Board |
| Number of Positions | 14 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Insulation Color | Black |
| Insulation Height | 0.335" (8.51mm) |
| Contact Length - Post | 0.114" (2.90mm) |
| Operating Temperature | -55°C ~ 105°C |
| Material Flammability Rating | - |
| Contact Finish - Post | Tin |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | - |
| Current Rating (Amps) | 3A |
| Voltage Rating | 350V |
Stock Status: 1755
Minimum: 1
Price: $2.91055
