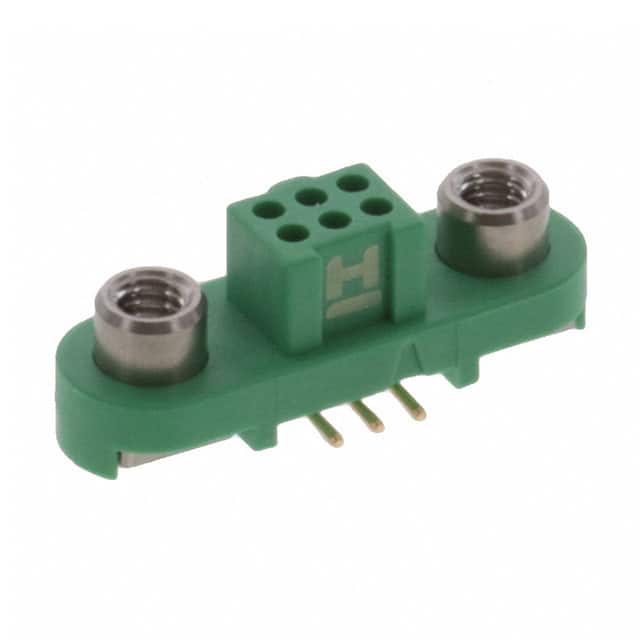

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | G125-FS10605F2P |
| Manufacturer: | Harwin |
| Part of Description: | CONN RCPT 6POS 0.049 GOLD SMD |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 344 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | Gecko SL Reverse Fix |
| Package | Cut Tape (CT) |
| Part Status | Active |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Style | Board to Board or Cable |
| Number of Positions | 6 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.049" (1.25mm) |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.049" (1.25mm) |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Screw Lock |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
| Insulation Color | Green |
| Insulation Height | 0.207" (5.25mm) |
| Contact Length - Post | - |
| Operating Temperature | -65°C ~ 150°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Gold |
| Mated Stacking Heights | 7.33mm, 7.4mm |
| Ingress Protection | - |
| Features | Pick and Place, Polarizing Key |
| Current Rating (Amps) | 2A |
| Voltage Rating | 450V |
Stock Status: 344
Minimum: 1
Price: $16.38000
