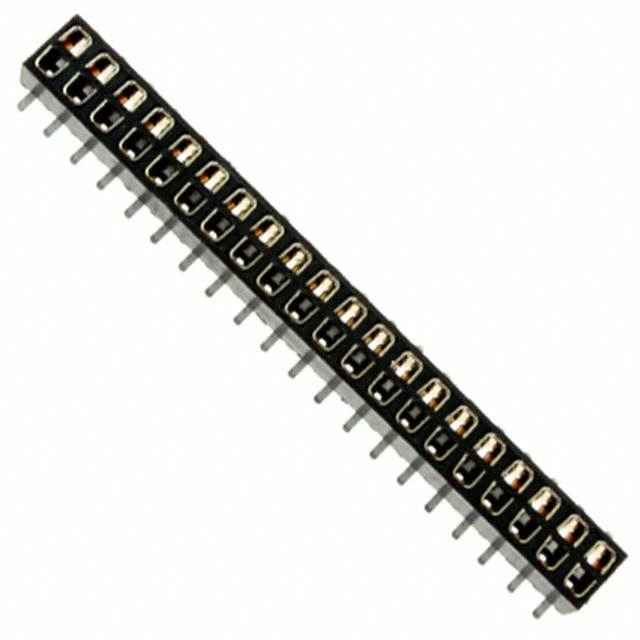

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | 153240-2020-RB |
| Manufacturer: | 3M |
| Part of Description: | CONN RCPT 40POS 0.079 GOLD SMD |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 1218 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | 1532 |
| Package | Bulk |
| Part Status | Active |
| Connector Type | Receptacle, Bottom or Top Entry |
| Contact Type | Female Socket |
| Style | Board to Board or Cable |
| Number of Positions | 40 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.079" (2.00mm) |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.079" (2.00mm) |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Insulation Color | Black |
| Insulation Height | 0.129" (3.28mm) |
| Contact Length - Post | - |
| Operating Temperature | -55°C ~ 105°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Tin |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | Board Guide |
| Current Rating (Amps) | 1A |
| Voltage Rating | 500VDC |
Stock Status: 1218
Minimum: 1
Price: $4.26000
