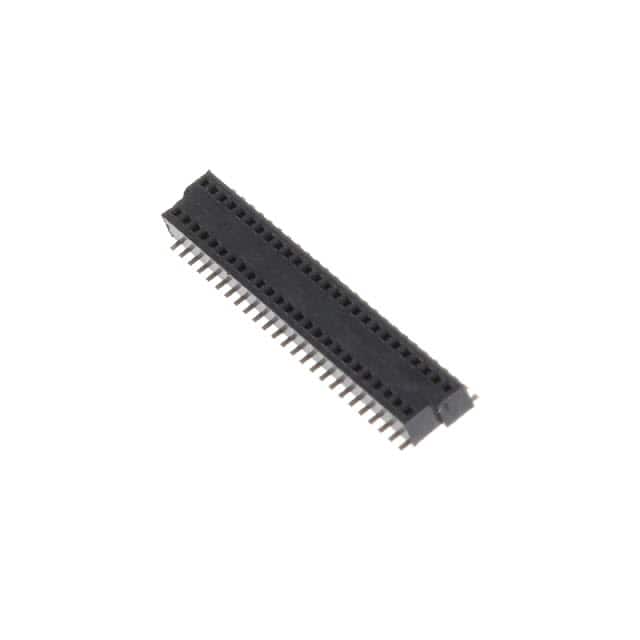

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | BKS-151-01-L-V-A |
| Manufacturer: | Samtec, Inc. |
| Part of Description: | CONN SOCKET 51POS 0.039 GOLD SMD |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 517 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | BKS |
| Package | Tube |
| Part Status | Active |
| Connector Type | Socket |
| Contact Type | Female Socket |
| Style | Board to Board |
| Number of Positions | 51 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.039" (1.00mm) |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Insulation Color | Black |
| Insulation Height | 0.084" (2.14mm) |
| Contact Length - Post | - |
| Operating Temperature | -55°C ~ 125°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Tin |
| Mated Stacking Heights | 4.14mm, 4.5mm, 5mm, 6mm, 7mm |
| Ingress Protection | - |
| Features | - |
| Current Rating (Amps) | 2.8A per Contact |
| Voltage Rating | - |
Stock Status: 517
Minimum: 1
Price: $10.38000
