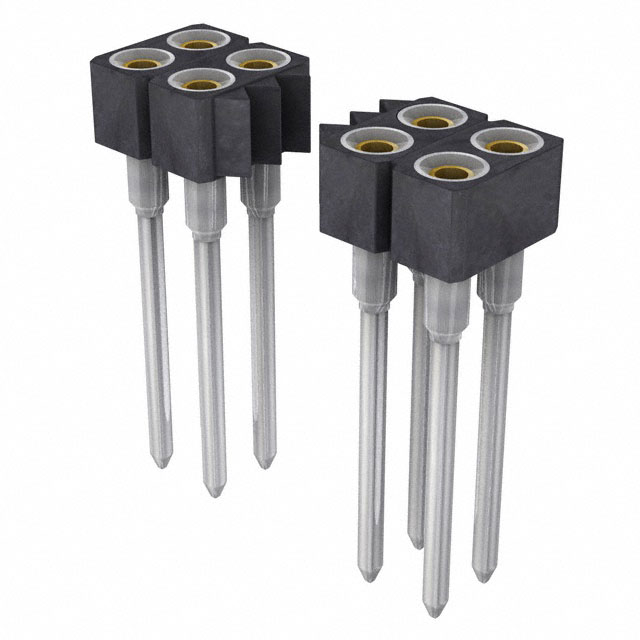

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | 422-83-252-41-001101 |
| Manufacturer: | Preci-Dip |
| Part of Description: | CONN SOCKET 52POS 0.1 GOLD PCB |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 926 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | 422 |
| Package | Bulk |
| Part Status | Active |
| Connector Type | Socket |
| Contact Type | Female Socket |
| Style | Board to Cable/Wire |
| Number of Positions | 52 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Mounting Type | Through Hole |
| Termination | Wire Wrap |
| Fastening Type | Push-Pull |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 29.5µin (0.75µm) |
| Insulation Color | Black |
| Insulation Height | 0.193" (4.90mm) |
| Contact Length - Post | 0.370" (9.40mm) |
| Operating Temperature | -55°C ~ 125°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Tin |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | - |
| Current Rating (Amps) | 3A |
| Voltage Rating | - |
Stock Status: 926
Minimum: 1
Price: $5.62990
