BCS-139-L-D-PE-016 - Samtec, Inc.

Name: BCS-139-L-D-PE-016
Brand: Samtec, Inc.
SKU: BCS-139-L-D-PE-016
Price: Please inquire. USD
Availability: InStock
Rating: 4.8 (156 reviews)

Samtec, Inc. BCS-139-L-D-PE-016 - CONN RCPT 78POS 0.1 GOLD PCB

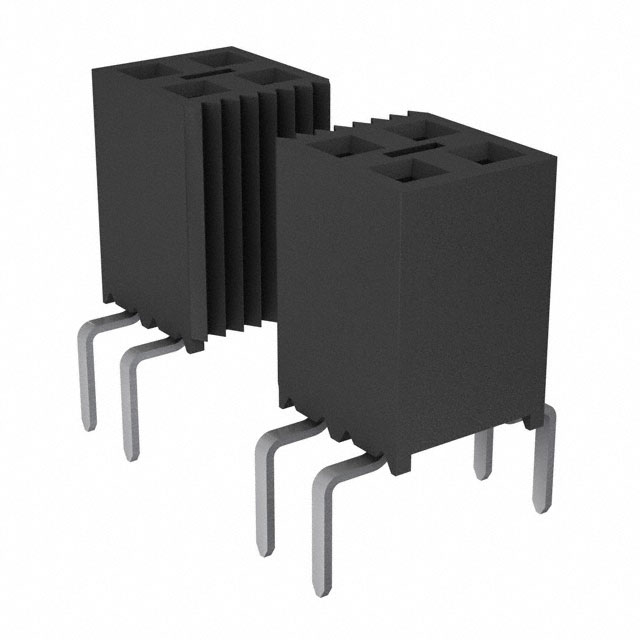

Image is for reference, please contact us to get the real picture

Manufacturer Part Number:	BCS-139-L-D-PE-016
Manufacturer:	Samtec, Inc.
Part of Description:	CONN RCPT 78POS 0.1 GOLD PCB
Lead Free Status / RoHS Status:	Lead Free / RoHS Compliant
Stock Condition:	3563 In Stock
Ship From:	Hong Kong
Shipment Way:	DHL/Fedex/TNT/UPS/EMS

REMARK: Buy the BCS-139-L-D-PE-016 Samtec, Inc. on xunyun-ic.com, Samtec is a worldwide manufacturer of P.C. Board level interconnects. Samtec is a global manufacturer of a broad line of electronic interconnect solutions, including micro pitch board-to-board systems (on .100”, 2 mm, .050”, 1 mm, .8 mm, .635 mm, .5 mm, and .4 mm pitch), high-speed mezzanine sys...

Specification

Type	Description
Series	Tiger Claw™ BCS
Package	Tube
Part Status	Active
Connector Type	Receptacle, Pass Through
Contact Type	Female Socket
Style	Board to Board
Number of Positions	78
Number of Positions Loaded	77
Pitch - Mating	0.100" (2.54mm)
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Insulation Color	Black
Insulation Height	0.290" (7.37mm)
Contact Length - Post	0.128" (3.25mm)
Operating Temperature	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Mated Stacking Heights	-
Ingress Protection	-
Features	-
Current Rating (Amps)	4.6A per Contact
Voltage Rating	475VAC
