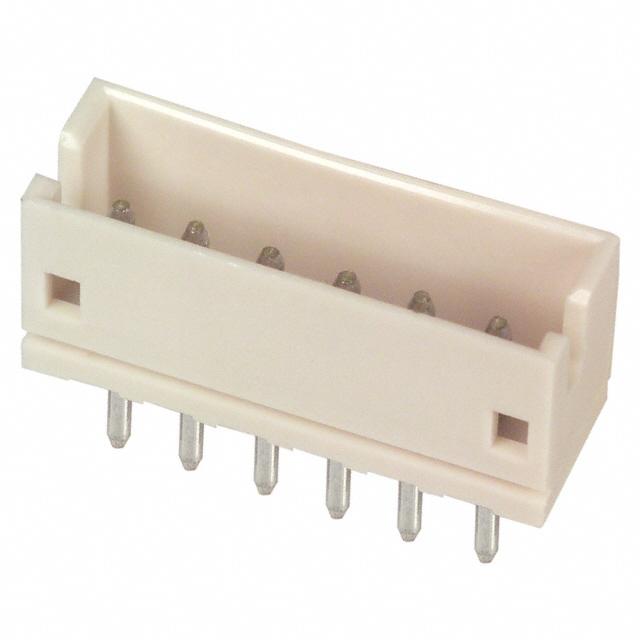

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | B6B-ZR |
| Manufacturer: | JST |
| Part of Description: | CONN HEADER VERT 6POS 1.5MM |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 3799 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | ZH |
| Package | Bulk |
| Part Status | Obsolete |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.059" (1.50mm) |
| Number of Positions | 6 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole |
| Termination | Press-Fit, Solder |
| Fastening Type | Detent Lock |
| Contact Length - Mating | 0.094" (2.40mm) |
| Contact Length - Post | 0.106" (2.69mm) |
| Overall Contact Length | 0.256" (6.50mm) |
| Insulation Height | 0.177" (4.50mm) |
| Contact Shape | Circular |
| Contact Finish - Mating | Tin-Lead |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin-Lead |
| Contact Material | Brass |
| Insulation Material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Features | - |
| Operating Temperature | -25°C ~ 85°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Natural |
| Current Rating (Amps) | 1A |
| Voltage Rating | 50V |
Stock Status: 3799
Minimum: 1
Call for price or submit a RFQ
