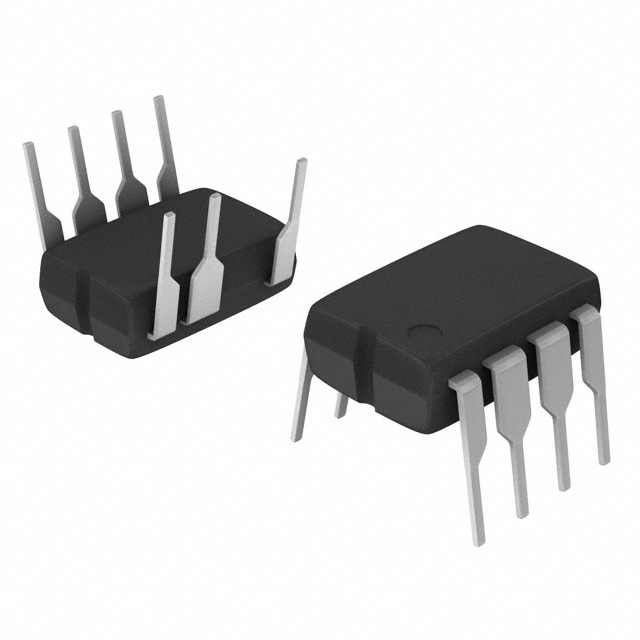

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | NCP1071P100G |
| Manufacturer: | Sanyo Semiconductor/ON Semiconductor |
| Part of Description: | IC REG SW 700V SMPS 8DIP |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 7118 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | - |
| Package | Tube |
| Part Status | Active |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 700V |
| Topology | Flyback |
| Voltage - Start Up | 8.2 V |
| Voltage - Supply (Vcc/Vdd) | 6.3V ~ 10V |
| Duty Cycle | 68% |
| Frequency - Switching | 100kHz |
| Power (Watts) | 14 W |
| Fault Protection | Over Load, Over Temperature, Over Voltage, Short Circuit |
| Control Features | - |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Package / Case | 8-DIP (0.300", 7.62mm), 7 Leads |
| Supplier Device Package | 7-DIP |
| Mounting Type | Through Hole |
Stock Status: 7118
Minimum: 1
Price: $0.70591
