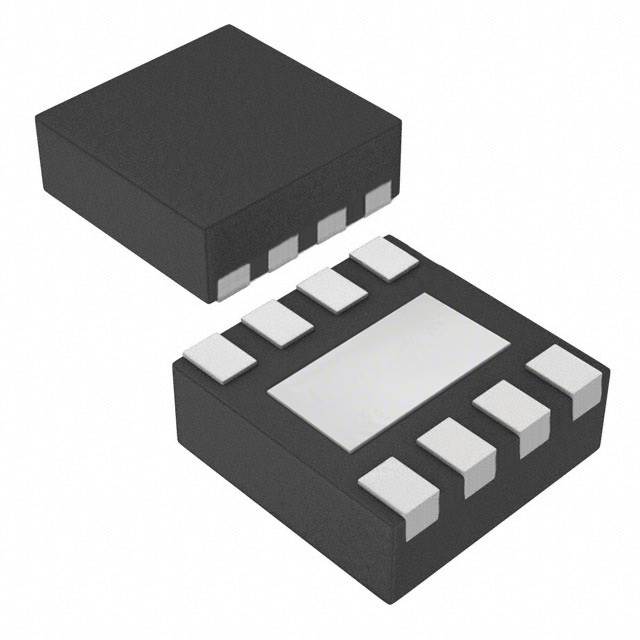

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | LM5002SD |
| Manufacturer: | Texas Instruments |
| Part of Description: | IC REG MULTI CONFG ADJ 8WSON |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 2933 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | - |
| Package | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® |
| Part Status | Obsolete |
| Function | Step-Up, Step-Up/Step-Down |
| Output Configuration | Positive, Isolation Capable |
| Topology | Boost, Flyback, Forward Converter, SEPIC |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 3.1V |
| Voltage - Input (Max) | 75V |
| Voltage - Output (Min/Fixed) | 3.1V |
| Voltage - Output (Max) | 76V (Switch) |
| Current - Output | 400mA (Switch) |
| Frequency - Switching | 50kHz ~ 1.5MHz |
| Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-WDFN Exposed Pad |
| Supplier Device Package | 8-WSON (4x4) |
Stock Status: 2933
Minimum: 1
Call for price or submit a RFQ
