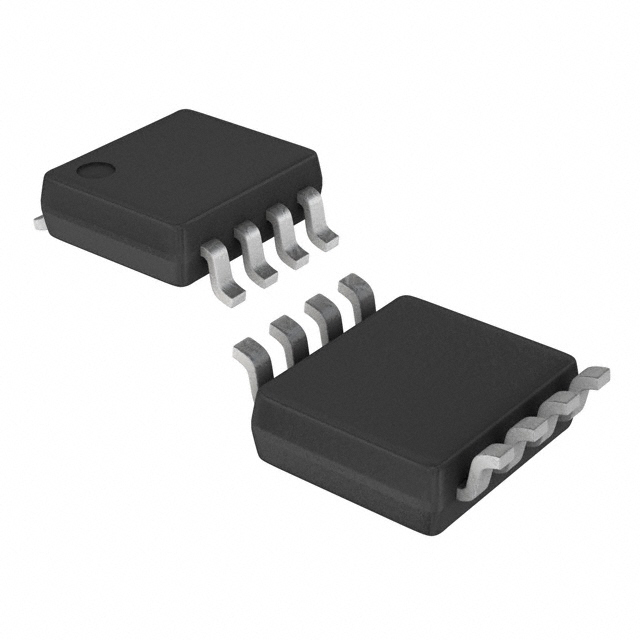

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | LM2698MM-ADJ |
| Manufacturer: | Texas Instruments |
| Part of Description: | IC REG BST SEPIC ADJ 8VSSOP |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 4480 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | SIMPLE SWITCHER® |
| Package | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® |
| Part Status | Obsolete |
| Function | Step-Up, Step-Up/Step-Down |
| Output Configuration | Positive or Negative |
| Topology | Boost, SEPIC |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 2.2V |
| Voltage - Input (Max) | 12V |
| Voltage - Output (Min/Fixed) | 2.2V |
| Voltage - Output (Max) | 17.5V |
| Current - Output | 1.35A (Switch) |
| Frequency - Switching | 600kHz, 1.25MHz |
| Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-VSSOP |
Stock Status: 4480
Minimum: 1
Call for price or submit a RFQ
