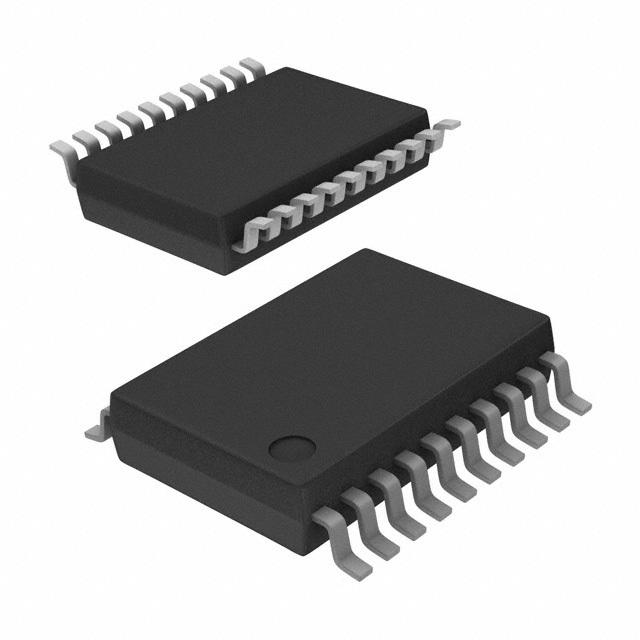

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | SN74ACT534DBRE4 |
| Manufacturer: | Texas Instruments |
| Part of Description: | IC FF D-TYPE SNGL 8BIT 20SSOP |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 1871 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | 74ACT |
| Package | Tape & Reel (TR) |
| Part Status | Obsolete |
| Function | Standard |
| Type | D-Type |
| Output Type | Tri-State, Inverted |
| Number of Elements | 1 |
| Number of Bits per Element | 8 |
| Clock Frequency | 100 MHz |
| Max Propagation Delay @ V, Max CL | 11.5ns @ 5V, 50pF |
| Trigger Type | Positive Edge |
| Current - Output High, Low | 24mA, 24mA |
| Voltage - Supply | 4.5V ~ 5.5V |
| Current - Quiescent (Iq) | 4 µA |
| Input Capacitance | 4.5 pF |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 20-SSOP |
| Package / Case | 20-SSOP (0.209", 5.30mm Width) |
Stock Status: 1871
Minimum: 1
Call for price or submit a RFQ
