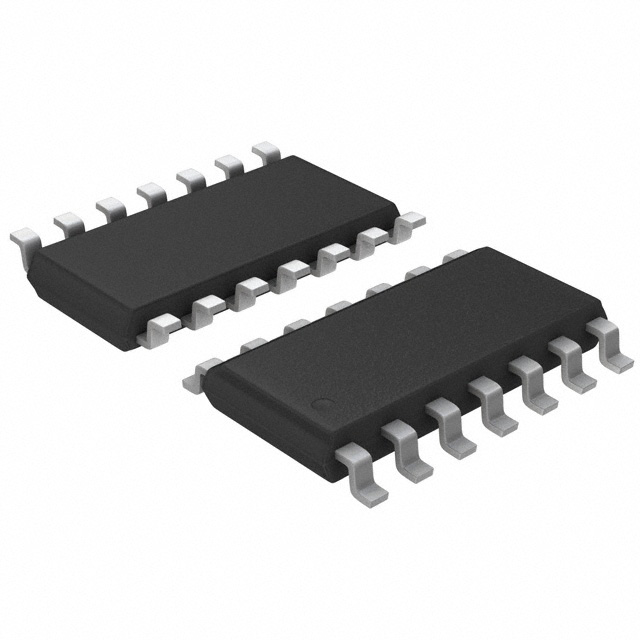

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | SN74LS74AD |
| Manufacturer: | Texas Instruments |
| Part of Description: | IC FF D-TYPE DUAL 1BIT 14SOIC |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 6610 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | 74LS |
| Package | Tube |
| Part Status | Active |
| Function | Set(Preset) and Reset |
| Type | D-Type |
| Output Type | Complimentary |
| Number of Elements | 2 |
| Number of Bits per Element | 1 |
| Clock Frequency | 33 MHz |
| Max Propagation Delay @ V, Max CL | 40ns @ 5V, 15pF |
| Trigger Type | Positive Edge |
| Current - Output High, Low | 400µA, 8mA |
| Voltage - Supply | 4.75V ~ 5.25V |
| Current - Quiescent (Iq) | 8 mA |
| Input Capacitance | - |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-SOIC |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
Stock Status: 6610
Minimum: 1
Price: $0.76000
