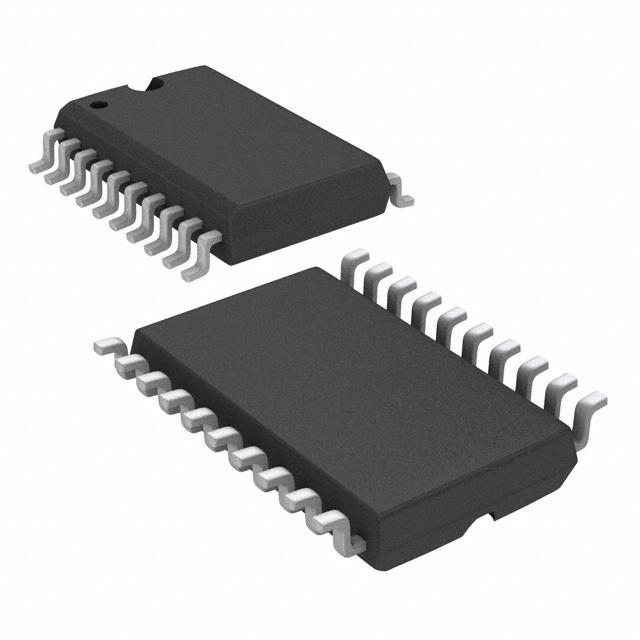

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | SN74AS823ADWRE4 |
| Manufacturer: | Texas Instruments |
| Part of Description: | IC FF D-TYPE SNGL 9BIT 20SOIC |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 961 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | 74AS |
| Package | Tape & Reel (TR) |
| Part Status | Obsolete |
| Function | Master Reset |
| Type | D-Type |
| Output Type | Tri-State, Non-Inverted |
| Number of Elements | 1 |
| Number of Bits per Element | 9 |
| Clock Frequency | - |
| Max Propagation Delay @ V, Max CL | 13ns @ 5V, 50pF |
| Trigger Type | Positive Edge |
| Current - Output High, Low | 24mA, 48mA |
| Voltage - Supply | 4.5V ~ 5.5V |
| Current - Quiescent (Iq) | 80 mA |
| Input Capacitance | - |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 20-SOIC |
| Package / Case | 24-SOIC (0.295", 7.50mm Width) |
Stock Status: 961
Minimum: 1
Call for price or submit a RFQ
