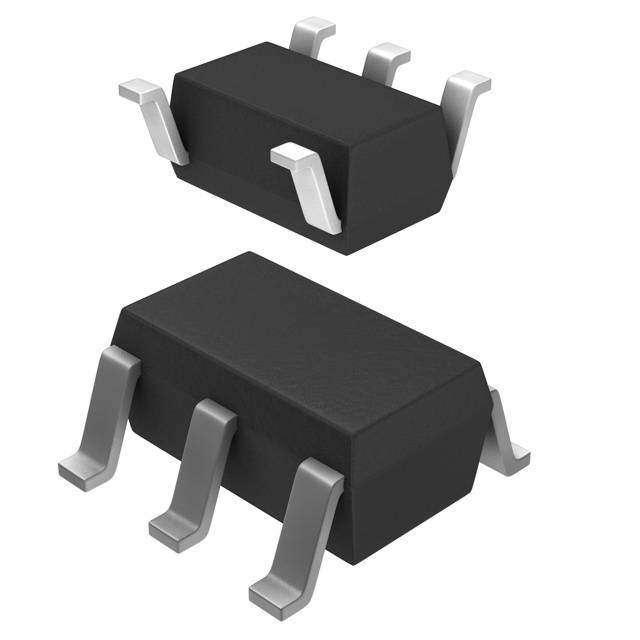

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | 74LVC1G14QW5-7 |
| Manufacturer: | Zetex Semiconductors (Diodes Inc.) |
| Part of Description: | IC INVERT 1CH 1-INP SOT25 TR/3K |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 13563 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | Automotive, AEC-Q100, 74LVC |
| Package | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® |
| Part Status | Active |
| Logic Type | Inverter |
| Number of Circuits | 1 |
| Number of Inputs | 1 |
| Features | Schmitt Trigger |
| Voltage - Supply | 1.65V ~ 5.5V |
| Current - Quiescent (Max) | 4 µA |
| Current - Output High, Low | 32mA, 32mA |
| Logic Level - Low | 0.64V ~ 2.29V |
| Logic Level - High | 1.16V ~ 3.33V |
| Max Propagation Delay @ V, Max CL | 6.5ns @ 5V, 50pF |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | SOT-25 |
| Package / Case | SC-74A, SOT-753 |
Stock Status: 13563
Minimum: 1
Price: $0.37000
