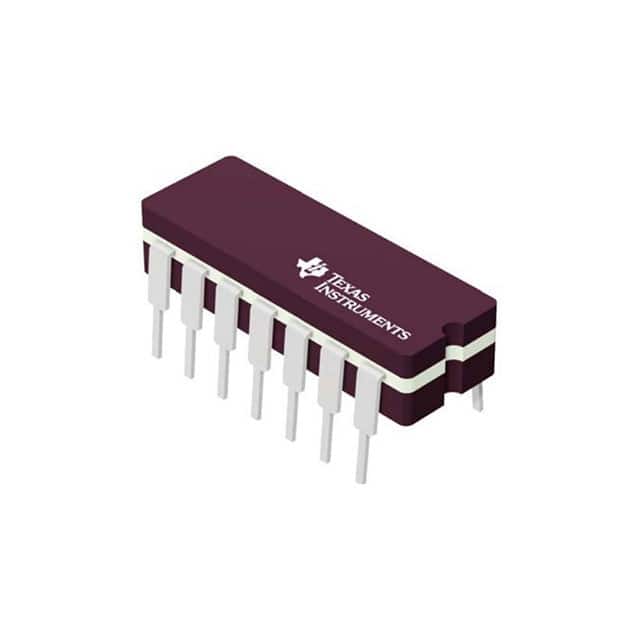

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | SN74LS02N |
| Manufacturer: | Texas Instruments |
| Part of Description: | IC GATE NOR 4CH 2-INP 14DIP |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 6794 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | 74LS |
| Package | Tube |
| Part Status | Active |
| Logic Type | NOR Gate |
| Number of Circuits | 4 |
| Number of Inputs | 2 |
| Features | - |
| Voltage - Supply | 4.75V ~ 5.25V |
| Current - Quiescent (Max) | - |
| Current - Output High, Low | 400µA, 16mA |
| Logic Level - Low | 0.8V |
| Logic Level - High | 2V |
| Max Propagation Delay @ V, Max CL | 15ns @ 5V, 15pF |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Through Hole |
| Supplier Device Package | 14-PDIP |
| Package / Case | 14-DIP (0.300", 7.62mm) |
Stock Status: 6794
Minimum: 1
Price: $0.74000
