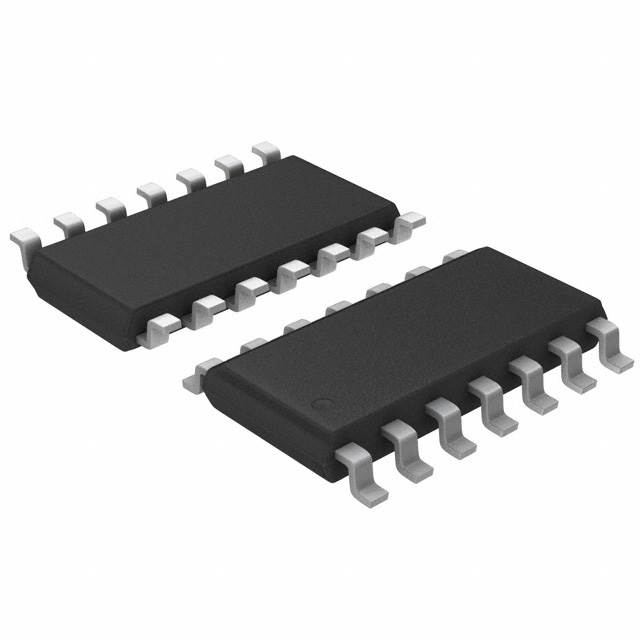

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | TC74LCX14F(EL,K,F) |
| Manufacturer: | Toshiba Electronic Devices and Storage Corporation |
| Part of Description: | IC INVERT SCHMITT 6CH 6-IN 14SOP |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 30788 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | 74LCX |
| Package | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® |
| Part Status | Not For New Designs |
| Logic Type | Inverter |
| Number of Circuits | 6 |
| Number of Inputs | 6 |
| Features | Schmitt Trigger |
| Voltage - Supply | 1.65V ~ 3.6V |
| Current - Quiescent (Max) | 10 µA |
| Current - Output High, Low | 24mA, 24mA |
| Logic Level - Low | 0.3V ~ 0.6V |
| Logic Level - High | 1.35V ~ 2.2V |
| Max Propagation Delay @ V, Max CL | 6.5ns @ 3.3V, 50pF |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-SOP |
| Package / Case | 14-SOIC (0.209", 5.30mm Width) |
Stock Status: 30788
Minimum: 1
Price: $0.16266
