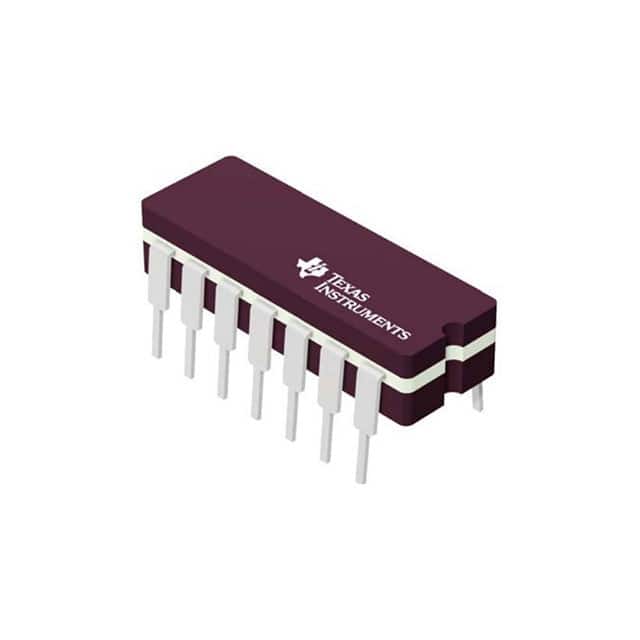

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | SN74ALS10AN |
| Manufacturer: | Texas Instruments |
| Part of Description: | IC GATE NAND 3CH 3-INP 14DIP |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 5308 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | 74ALS |
| Package | Tube |
| Part Status | Active |
| Logic Type | NAND Gate |
| Number of Circuits | 3 |
| Number of Inputs | 3 |
| Features | - |
| Voltage - Supply | 4.5V ~ 5.5V |
| Current - Quiescent (Max) | - |
| Current - Output High, Low | 400µA, 8mA |
| Logic Level - Low | 0.8V |
| Logic Level - High | 2V |
| Max Propagation Delay @ V, Max CL | 11ns @ 5V, 50pF |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Through Hole |
| Supplier Device Package | 14-PDIP |
| Package / Case | 14-DIP (0.300", 7.62mm) |
Stock Status: 5308
Minimum: 1
Price: $0.95000
