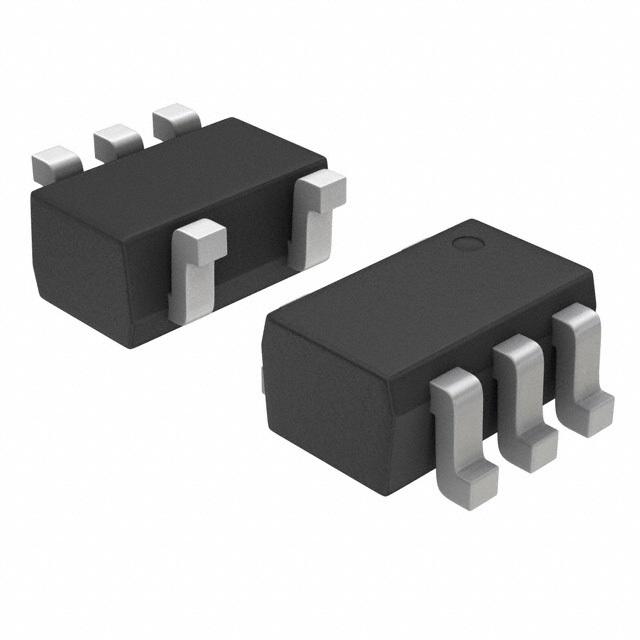

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | NLVVHC1G135DFT2G |
| Manufacturer: | Sanyo Semiconductor/ON Semiconductor |
| Part of Description: | IC GATE NAND 1CH 2IN SC88A |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 12226 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | Automotive, AEC-Q100, 74VHC |
| Package | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® |
| Part Status | Active |
| Logic Type | NAND Gate |
| Number of Circuits | 1 |
| Number of Inputs | 2 |
| Features | Schmitt Trigger, Open Drain |
| Voltage - Supply | 2V ~ 5.5V |
| Current - Quiescent (Max) | 1 µA |
| Current - Output High, Low | -, 8mA |
| Logic Level - Low | 0.65V ~ 1.45V |
| Logic Level - High | 2.25V ~ 3.7V |
| Max Propagation Delay @ V, Max CL | 9.7ns @ 5V, 50pF |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | SC-88A (SC-70-5/SOT-353) |
| Package / Case | 5-TSSOP, SC-70-5, SOT-353 |
Stock Status: 12226
Minimum: 1
Price: $0.41000
