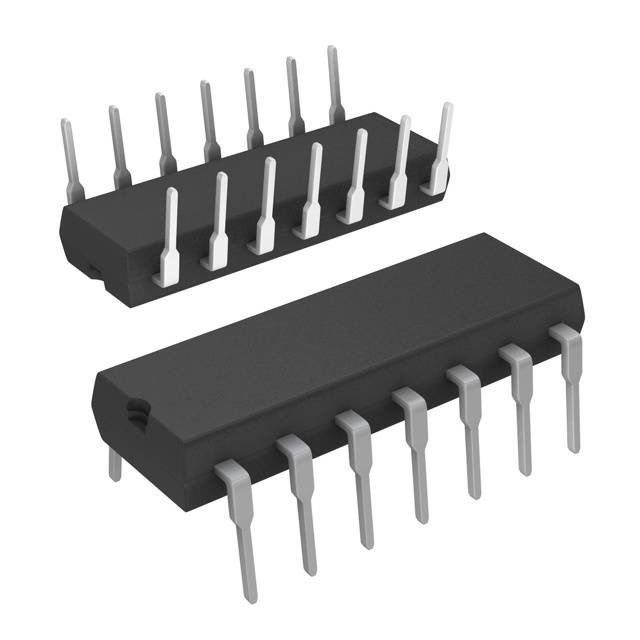

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | MC14082BCP |
| Manufacturer: | Sanyo Semiconductor/ON Semiconductor |
| Part of Description: | IC GATE AND 2CH 4-INP 14DIP |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 1175 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | 4000B |
| Package | Tube |
| Part Status | Obsolete |
| Logic Type | AND Gate |
| Number of Circuits | 2 |
| Number of Inputs | 4 |
| Features | - |
| Voltage - Supply | 3V ~ 18V |
| Current - Quiescent (Max) | 1 µA |
| Current - Output High, Low | 8.8mA, 8.8mA |
| Logic Level - Low | 1.5V ~ 4V |
| Logic Level - High | 3.5V ~ 11V |
| Max Propagation Delay @ V, Max CL | 100ns @ 15V, 50pF |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Through Hole |
| Supplier Device Package | 14-PDIP |
| Package / Case | 14-DIP (0.300", 7.62mm) |
Stock Status: 1175
Minimum: 1
Call for price or submit a RFQ
