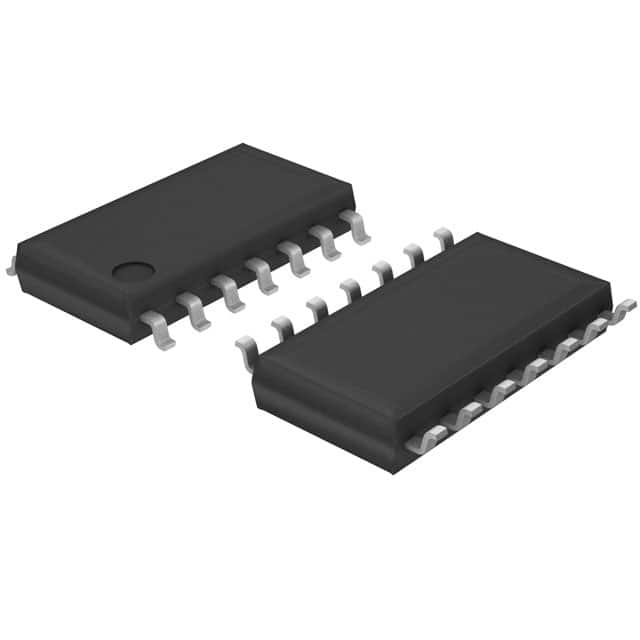

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | SN74LV10ANSR |
| Manufacturer: | Texas Instruments |
| Part of Description: | IC GATE NAND 3CH 3-INP 14SOP |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 11403 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | 74LV |
| Package | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® |
| Part Status | Active |
| Logic Type | NAND Gate |
| Number of Circuits | 3 |
| Number of Inputs | 3 |
| Features | - |
| Voltage - Supply | 2V ~ 5.5V |
| Current - Quiescent (Max) | 20 µA |
| Current - Output High, Low | 12mA, 12mA |
| Logic Level - Low | 0.5V |
| Logic Level - High | 1.5V |
| Max Propagation Delay @ V, Max CL | 7.9ns @ 5V, 50pF |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-SOP |
| Package / Case | 14-SOIC (0.209", 5.30mm Width) |
Stock Status: 11403
Minimum: 1
Price: $0.44000
