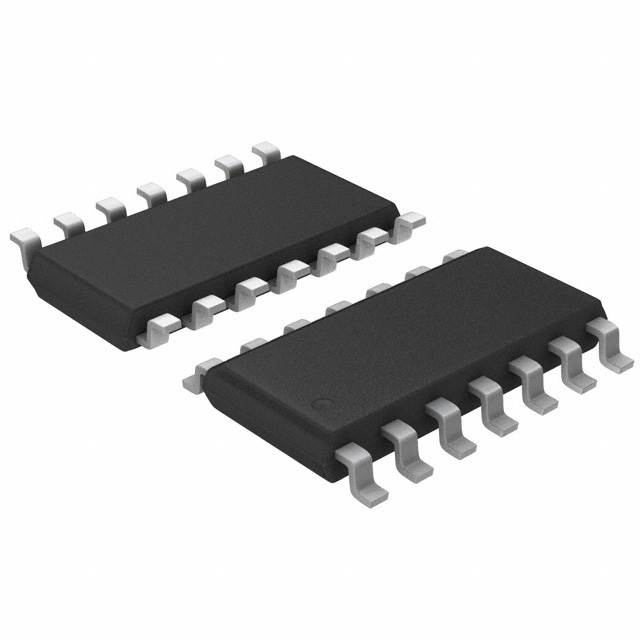

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | MC14001BDR2G |
| Manufacturer: | Sanyo Semiconductor/ON Semiconductor |
| Part of Description: | IC GATE NOR 4CH 2-INP 14SOIC |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 10245 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | 4000B |
| Package | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® |
| Part Status | Active |
| Logic Type | NOR Gate |
| Number of Circuits | 4 |
| Number of Inputs | 2 |
| Features | - |
| Voltage - Supply | 3V ~ 18V |
| Current - Quiescent (Max) | 1 µA |
| Current - Output High, Low | 8.8mA, 8.8mA |
| Logic Level - Low | 1.5V ~ 4V |
| Logic Level - High | 3.5V ~ 11V |
| Max Propagation Delay @ V, Max CL | 80ns @ 15V, 50pF |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-SOIC |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
Stock Status: 10245
Minimum: 1
Price: $0.49000
