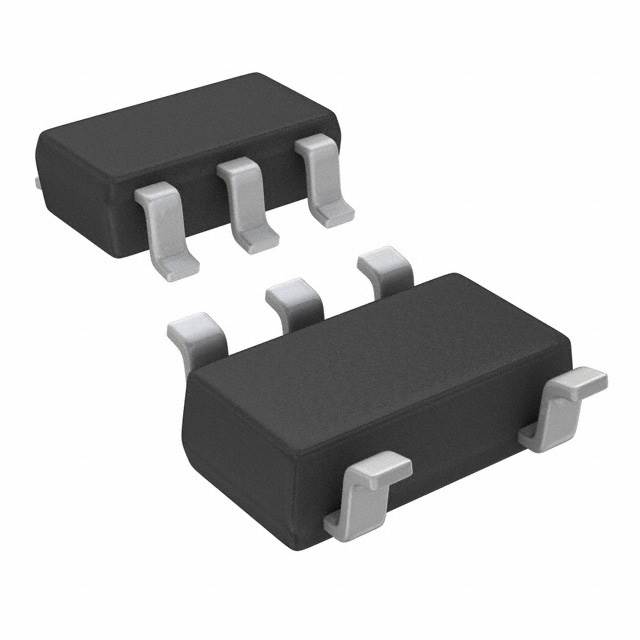

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | NC7S00M5 |
| Manufacturer: | Rochester Electronics |
| Part of Description: | IC GATE NAND 1CH 2-INP SOT23-5 |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 20880 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | 7S |
| Package | Bulk |
| Part Status | Obsolete |
| Logic Type | NAND Gate |
| Number of Circuits | 1 |
| Number of Inputs | 2 |
| Features | - |
| Voltage - Supply | 2V ~ 6V |
| Current - Quiescent (Max) | 1 µA |
| Current - Output High, Low | 2.6mA, 2.6mA |
| Logic Level - Low | 0.5V |
| Logic Level - High | 1.5V |
| Max Propagation Delay @ V, Max CL | 17ns @ 6V, 50pF |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | SOT-23-5 |
| Package / Case | SC-74A, SOT-753 |
Stock Status: 20880
Minimum: 1
Price: $0.24000
