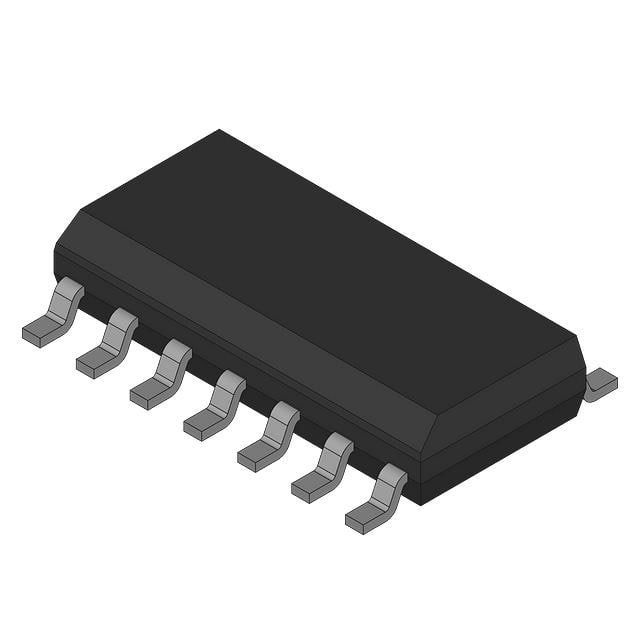

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | MC74ACT86D |
| Manufacturer: | Rochester Electronics |
| Part of Description: | IC GATE XOR 4CH 2-INP 14SOIC |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 55605 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | 74ACT |
| Package | Bulk |
| Part Status | Active |
| Logic Type | XOR (Exclusive OR) |
| Number of Circuits | 4 |
| Number of Inputs | 2 |
| Features | - |
| Voltage - Supply | 4.5V ~ 5.5V |
| Current - Quiescent (Max) | 4 µA |
| Current - Output High, Low | 24mA, 24mA |
| Logic Level - Low | 0.8V |
| Logic Level - High | 2V |
| Max Propagation Delay @ V, Max CL | 9.5ns @ 5V, 50pF |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-SOIC |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
Stock Status: 55605
Minimum: 1
Price: $0.09000
