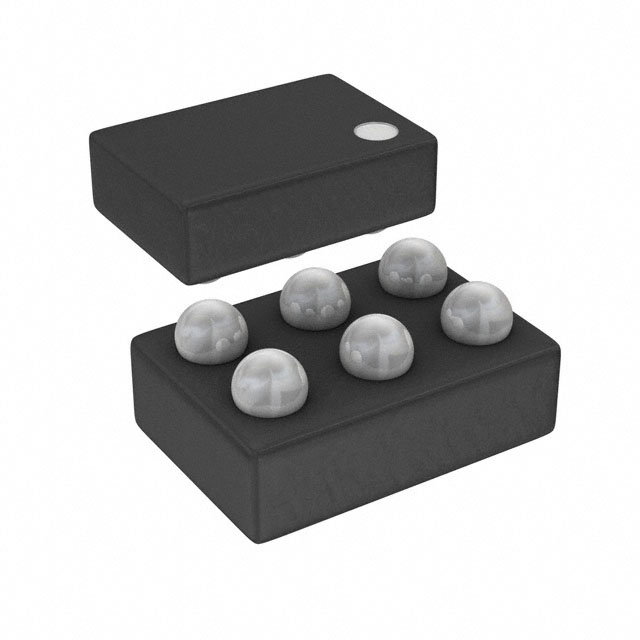

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | ADP221ACBZ2828-R7 |
| Manufacturer: | Linear Technology (Analog Devices, Inc.) |
| Part of Description: | IC REG LINEAR 2.8V/2.8V 6WLCSP |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 2589 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | - |
| Package | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® |
| Part Status | Obsolete |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 2 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 2.8V, 2.8V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.23V @ 200mA, 0.23V @ 200mA |
| Current - Output | 200mA, 200mA |
| Current - Quiescent (Iq) | 120 µA |
| Current - Supply (Max) | 220 µA |
| PSRR | 68dB ~ 40dB (100Hz ~ 1MHz), 68dB ~ 40dB (100Hz ~ 1MHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 6-WFBGA, WLCSP |
| Supplier Device Package | 6-WLCSP (1.45x0.95) |
Stock Status: 2589
Minimum: 1
Call for price or submit a RFQ
