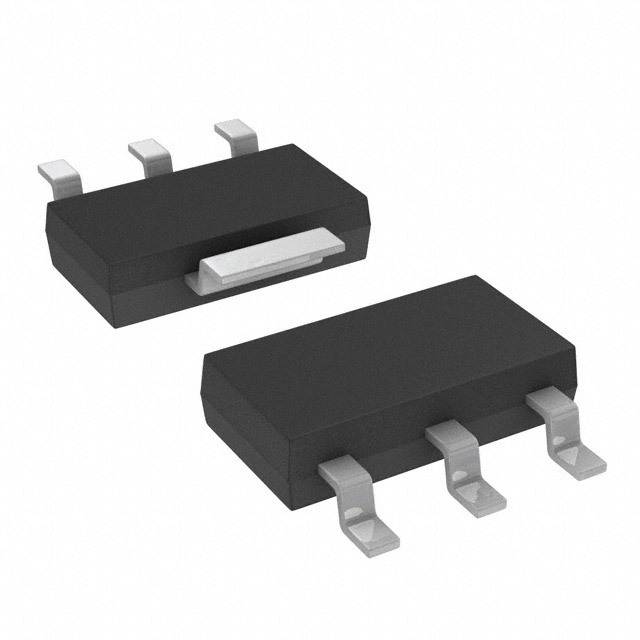

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | NCP1117STAT3G |
| Manufacturer: | Sanyo Semiconductor/ON Semiconductor |
| Part of Description: | IC REG LINEAR POS ADJ 1A SOT223 |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 10447 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | - |
| Package | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® |
| Part Status | Active |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 20V |
| Voltage - Output (Min/Fixed) | 1.25V |
| Voltage - Output (Max) | 18.8V |
| Voltage Dropout (Max) | 1.2V @ 800mA |
| Current - Output | 1A |
| Current - Quiescent (Iq) | 10 mA |
| Current - Supply (Max) | - |
| PSRR | 73dB (120Hz) |
| Control Features | - |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | 0°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | TO-261-4, TO-261AA |
| Supplier Device Package | SOT-223 |
Stock Status: 10447
Minimum: 1
Price: $0.48000
