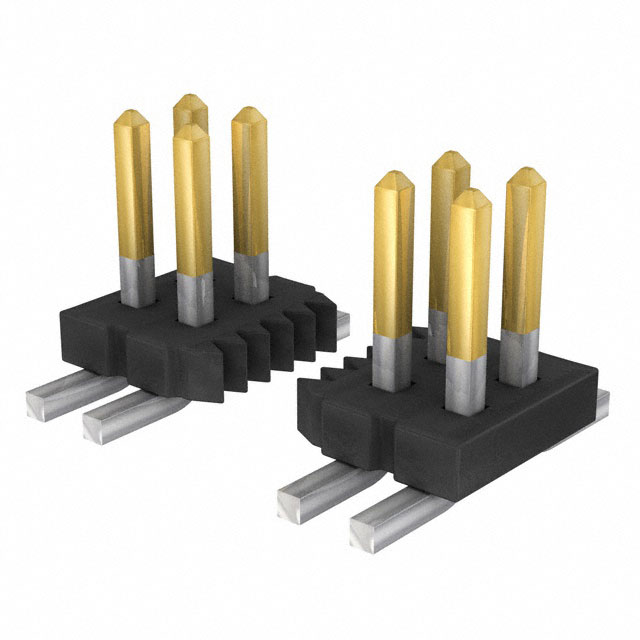

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | FTS-114-01-LM-DV-TR |
| Manufacturer: | Samtec, Inc. |
| Part of Description: | CONN HEADER SMD 28POS 1.27MM |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 3877 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | FTS |
| Package | Tape & Reel (TR) |
| Part Status | Active |
| Connector Type | Header, Cuttable |
| Contact Type | Male Pin |
| Pitch - Mating | 0.050" (1.27mm) |
| Number of Positions | 28 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.050" (1.27mm) |
| Number of Positions Loaded | All |
| Style | Board to Board or Cable |
| Shrouding | Unshrouded |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | 0.120" (3.05mm) |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | 0.034" (0.86mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Finish - Post | Tin |
| Contact Material | Phosphor Bronze |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Features | - |
| Operating Temperature | -55°C ~ 125°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 3.4A per Contact |
| Voltage Rating | - |
Stock Status: 3877
Minimum: 1
Call for price or submit a RFQ
