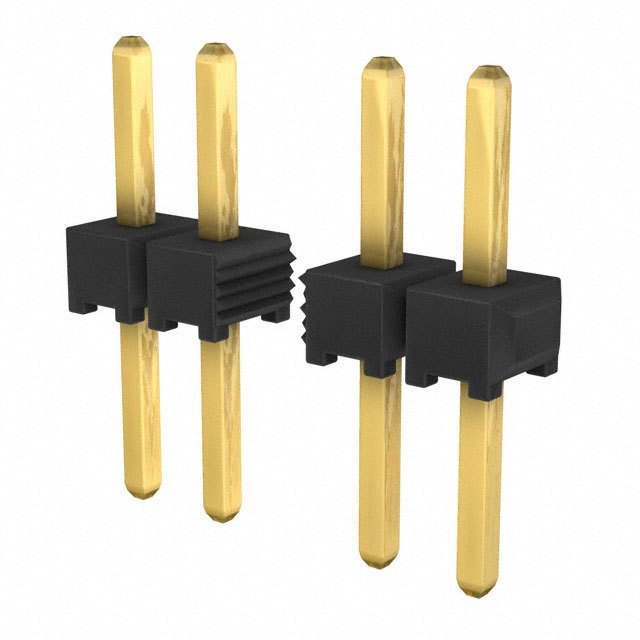

| Manufacturer Part Number: | TMM-143-01-G-S |
| Manufacturer: | Samtec, Inc. |
| Part of Description: | CONN HEADER VERT 43POS 2MM |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 758 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | TMM |
| Package | Bulk |
| Part Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.079" (2.00mm) |
| Number of Positions | 43 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Board or Cable |
| Shrouding | Unshrouded |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | 0.126" (3.20mm) |
| Contact Length - Post | 0.138" (3.50mm) |
| Overall Contact Length | 0.323" (8.20mm) |
| Insulation Height | 0.059" (1.50mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 20.0µin (0.51µm) |
| Contact Finish - Post | Gold |
| Contact Material | Phosphor Bronze |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Features | - |
| Operating Temperature | -55°C ~ 125°C |
| Ingress Protection | - |
| Material Flammability Rating | - |
| Insulation Color | Black |
| Current Rating (Amps) | 3.2A per Contact |
| Voltage Rating | - |
Stock Status: 758
Minimum: 1
Price: $6.98000
