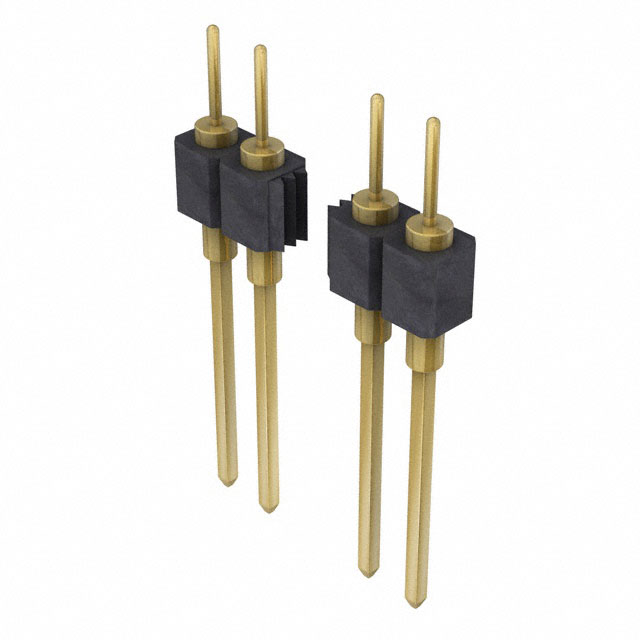

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | 353-10-149-00-001101 |
| Manufacturer: | Preci-Dip |
| Part of Description: | CONN HEADER VERT 49POS 2.54MM |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 530 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | 353 |
| Package | Bulk |
| Part Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Positions | 49 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Board |
| Shrouding | Unshrouded |
| Mounting Type | Through Hole |
| Termination | Wire Wrap |
| Fastening Type | Push-Pull |
| Contact Length - Mating | 0.147" (3.73mm) |
| Contact Length - Post | 0.510" (12.95mm) |
| Overall Contact Length | 0.880" (22.36mm) |
| Insulation Height | 0.116" (2.95mm) |
| Contact Shape | Circular, Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Finish - Post | Gold |
| Contact Material | Brass |
| Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled |
| Features | - |
| Operating Temperature | -55°C ~ 125°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 3A |
| Voltage Rating | 150VDC |
Stock Status: 530
Minimum: 1
Price: $10.29467
