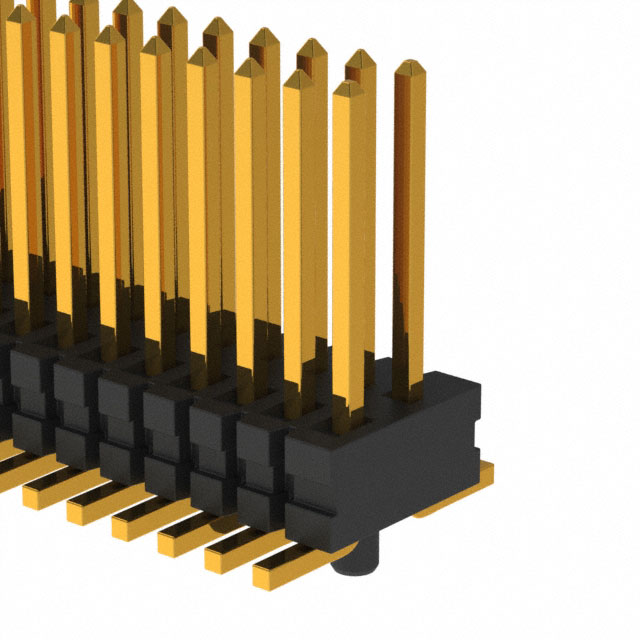

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | FTE-130-03-G-DV-A-P |
| Manufacturer: | Samtec, Inc. |
| Part of Description: | CONN HEADER SMD 60POS 0.8MM |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 433 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | FTE |
| Package | Tube |
| Part Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.031" (0.80mm) |
| Number of Positions | 60 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.047" (1.20mm) |
| Number of Positions Loaded | All |
| Style | Board to Board |
| Shrouding | Unshrouded |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | 0.120" (3.05mm) |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | 0.055" (1.40mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Finish - Post | Gold |
| Contact Material | Phosphor Bronze |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Features | Board Guide, Pick and Place |
| Operating Temperature | -55°C ~ 125°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 2.7A per Contact |
| Voltage Rating | - |
Stock Status: 433
Minimum: 1
Price: $12.89000
