BKT-131-03-H-V - Samtec, Inc.

Name: BKT-131-03-H-V
Brand: Samtec, Inc.
SKU: BKT-131-03-H-V
Price: 0.01 USD
Availability: InStock
Rating: 4.8 (156 reviews)

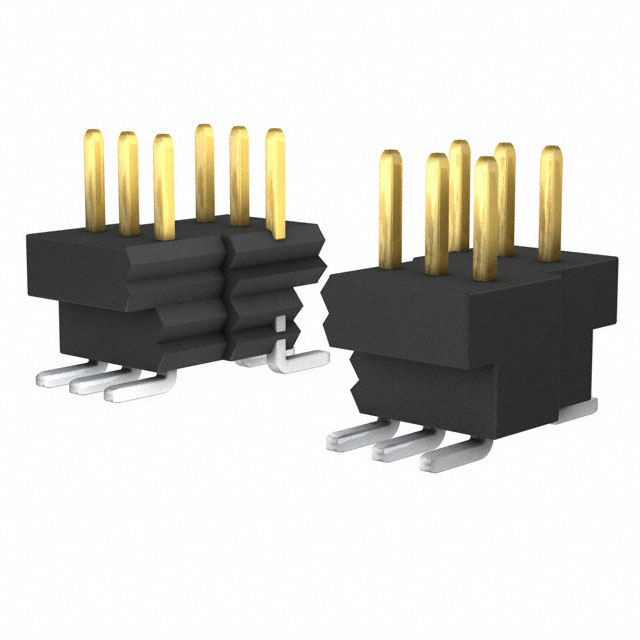

Image is for reference, please contact us to get the real picture

REMARK: Buy the BKT-131-03-H-V Samtec, Inc. on xunyun-ic.com, Samtec is a worldwide manufacturer of P.C. Board level interconnects. Samtec is a global manufacturer of a broad line of electronic interconnect solutions, including micro pitch board-to-board systems (on .100”, 2 mm, .050”, 1 mm, .8 mm, .635 mm, .5 mm, and .4 mm pitch), high-speed mezzanine sys...

Type	Description
Series	BKT
Package	Tube
Part Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.039" (1.00mm)
Number of Positions	31
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Board
Shrouding	Unshrouded
Mounting Type	Surface Mount
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.065" (1.65mm)
Contact Length - Post	-
Overall Contact Length	-
Insulation Height	0.098" (2.50mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Contact Finish - Post	Gold
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Features	-
Operating Temperature	-55°C ~ 125°C
Ingress Protection	-
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	2.8A per Contact
Voltage Rating	-
