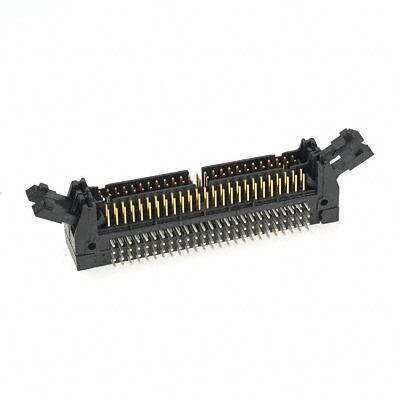

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | 3433-D303 |
| Manufacturer: | 3M |
| Part of Description: | CONN HEADER R/A 50POS 2.54MM |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 1721 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | 3000 |
| Package | Bulk |
| Part Status | Obsolete |
| Connector Type | Header, Stackable (2) |
| Contact Type | Male Pin |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Positions | 50, 50 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Number of Positions Loaded | All |
| Style | Board to Board or Cable |
| Shrouding | Shrouded - 3 Wall |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Fastening Type | Latch Lock/Eject Hooks, Long |
| Contact Length - Mating | 0.240" (6.10mm) |
| Contact Length - Post | 0.155" (3.94mm) |
| Overall Contact Length | - |
| Insulation Height | 0.660" (16.76mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin-Lead |
| Contact Material | Copper Alloy |
| Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled |
| Features | Keying Slot, Mounting Flange |
| Operating Temperature | -55°C ~ 105°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 1A |
| Voltage Rating | - |
Stock Status: 1721
Minimum: 1
Call for price or submit a RFQ
