TE Connectivity AMP Connectors / 4-1971906-5

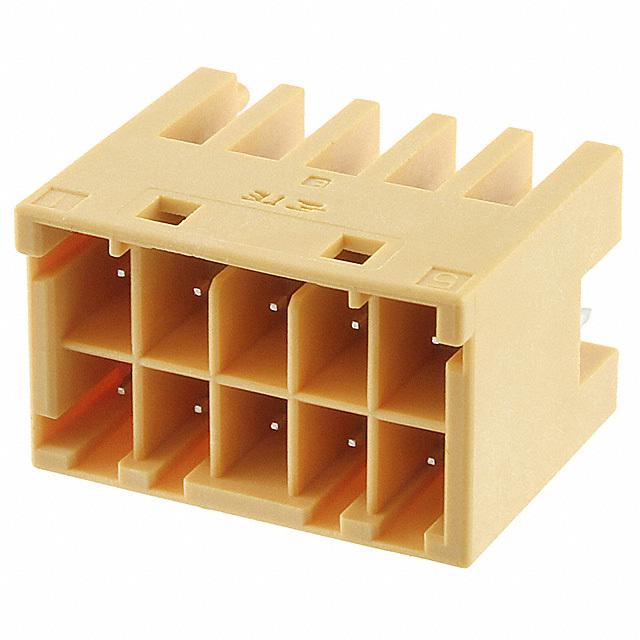

Image is for reference, please contact us to get the real picture

Manufacturer Part Number:	4-1971906-5
Manufacturer:	TE Connectivity AMP Connectors
Part of Description:	CONN HEADER VERT 10POS 3.3MM
Lead Free Status / RoHS Status:	Lead Free / RoHS Compliant
Stock Condition:	3252 In Stock
Ship From:	Hong Kong
Shipment Way:	DHL/Fedex/TNT/UPS/EMS

REMARK: Buy the 4-1971906-5 TE Connectivity AMP Connectors on xunyun-ic.com, we are TE Connectivity AMP Connectors Corporation distributor,we sales new&original and offer 24 hours service,180 days warranty date, send the 4-1971906-5 within 24 hours,please contact our sales team or send email to zimin@xinyunic.com Hope we can cooperate in the future.

Type	Description
Series	Grace Inertia, GIC
Package	Tray
Part Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.130" (3.30mm)
Number of Positions	10
Number of Rows	2
Row Spacing - Mating	0.205" (5.20mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Kinked Pin, Solder
Fastening Type	Latch Holder
Contact Length - Mating	-
Contact Length - Post	0.118" (3.00mm)
Overall Contact Length	0.575" (14.60mm)
Insulation Height	0.561" (14.25mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	-
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Features	Board Guide
Operating Temperature	-30°C ~ 105°C
Ingress Protection	-
Material Flammability Rating	UL94 V-0
Insulation Color	Yellow
Current Rating (Amps)	Varies by Wire Gauge
Voltage Rating	250VAC

All the Eelctronics Components will be packing in very safely by ESD antistatic protection.

package

BUYING OPTIONS

Stock Status: 3252

Minimum: 1

Call for price or sumbit a RFQ
