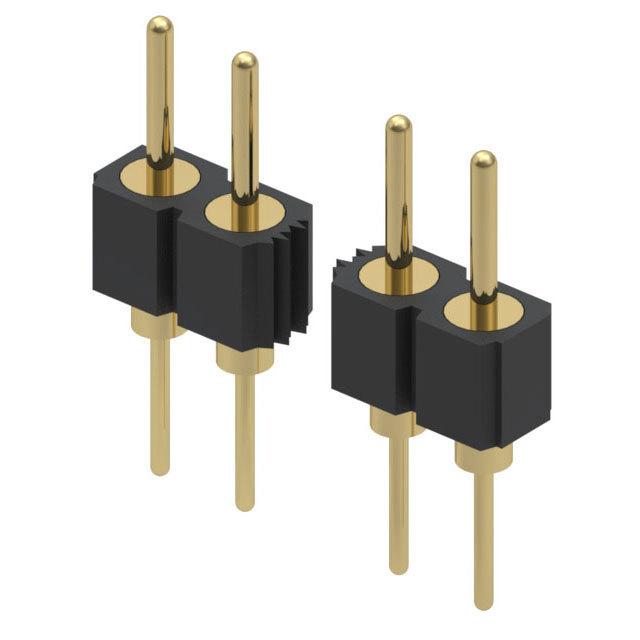

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | 350-10-112-00-001000 |
| Manufacturer: | Mill-Max |
| Part of Description: | CONN HEADER VERT 12POS 2.54MM |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 2131 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | 350 |
| Package | Tube |
| Part Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Positions | 12 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Board |
| Shrouding | Unshrouded |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | 0.166" (4.22mm) |
| Contact Length - Post | 0.157" (4.00mm) |
| Overall Contact Length | 0.477" (12.12mm) |
| Insulation Height | 0.110" (2.79mm) |
| Contact Shape | Circular |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Finish - Post | Gold |
| Contact Material | Brass Alloy |
| Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT) |
| Features | - |
| Operating Temperature | - |
| Ingress Protection | - |
| Material Flammability Rating | - |
| Insulation Color | Black |
| Current Rating (Amps) | - |
| Voltage Rating | - |
Stock Status: 2131
Minimum: 1
Price: $2.39000
