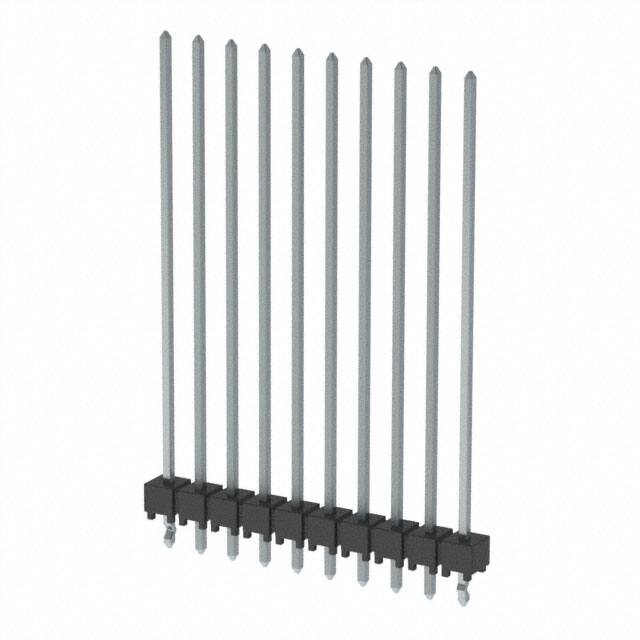

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | HTSW-110-21-T-S-LL |
| Manufacturer: | Samtec, Inc. |
| Part of Description: | CONN HEADER VERT 10POS 2.54MM |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 2851 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | HTSW |
| Package | Bulk |
| Part Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Positions | 10 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Board or Cable |
| Shrouding | Unshrouded |
| Mounting Type | Through Hole |
| Termination | Kinked Pin, Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | 1.220" (30.99mm) |
| Contact Length - Post | 0.110" (2.79mm) |
| Overall Contact Length | 1.430" (36.32mm) |
| Insulation Height | 0.100" (2.54mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Material | Phosphor Bronze |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Features | - |
| Operating Temperature | -55°C ~ 105°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Natural |
| Current Rating (Amps) | Varies by Wire Gauge |
| Voltage Rating | - |
Stock Status: 2851
Minimum: 1
Call for price or submit a RFQ
