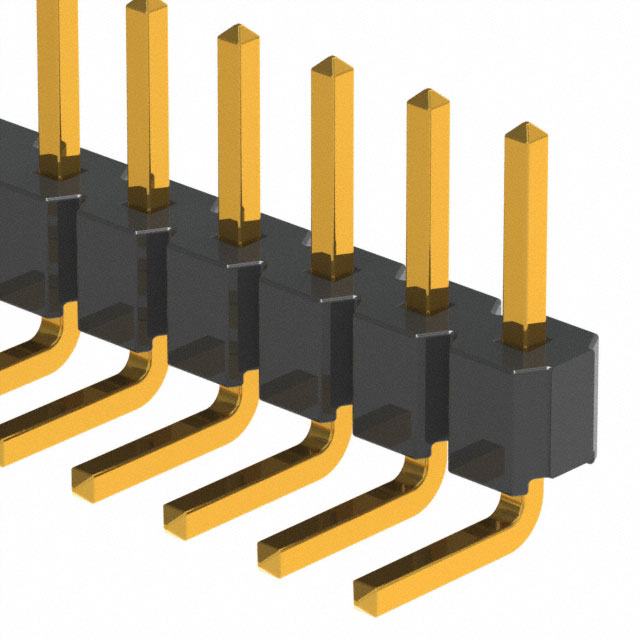

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | NRPN321PARN-RC |
| Manufacturer: | Sullins Connector Solutions |
| Part of Description: | CONN HEADER R/A 32POS 2MM |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 2106 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | - |
| Package | Bulk |
| Part Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.079" (2.00mm) |
| Number of Positions | 32 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Board or Cable |
| Shrouding | Unshrouded |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | 0.141" (3.60mm) |
| Contact Length - Post | 0.110" (2.79mm) |
| Overall Contact Length | - |
| Insulation Height | 0.079" (2.00mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Finish - Post | Gold |
| Contact Material | Brass |
| Insulation Material | Polyamide (PA6T), Nylon 6T |
| Features | - |
| Operating Temperature | -40°C ~ 105°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 2A |
| Voltage Rating | 150V |
Stock Status: 2106
Minimum: 1
Price: $2.41000
