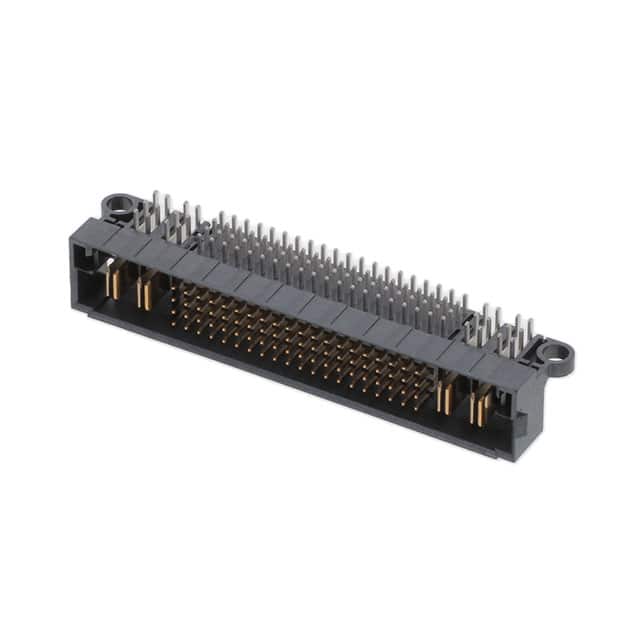

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | MPTC-02-80-02-01-01-L-RA-SD |
| Manufacturer: | Samtec, Inc. |
| Part of Description: | CONN HEADER R/A 84POS |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 451 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | PowerStrip™ 30 MPTC |
| Package | Tray |
| Part Status | Active |
| Connector Type | Header |
| Contact Type | Male Blade; Male Pin |
| Pitch - Mating | - |
| Number of Positions | 84 (80 + 4 Power) |
| Number of Rows | 4 |
| Row Spacing - Mating | 0.079" (2.00mm) |
| Number of Positions Loaded | All |
| Style | Board to Board |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Fastening Type | Locking Ramp |
| Contact Length - Mating | - |
| Contact Length - Post | 0.107" (2.71mm) |
| Overall Contact Length | - |
| Insulation Height | 0.490" (12.44mm) |
| Contact Shape | Rectangular, Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy, Phosphor Bronze |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Features | Mounting Flange |
| Operating Temperature | -55°C ~ 125°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | - |
| Voltage Rating | - |
Stock Status: 451
Minimum: 1
Price: $12.18000
