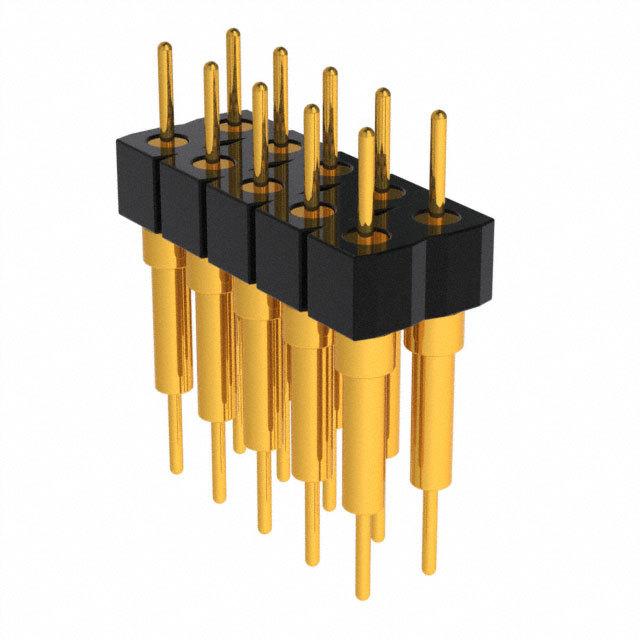

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | BBD-105-G-B |
| Manufacturer: | Samtec, Inc. |
| Part of Description: | CONN HEADER VERT 10POS 2.54MM |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 1028 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | BBD |
| Package | Tube |
| Part Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Number of Positions Loaded | All |
| Style | Board to Board |
| Shrouding | Unshrouded |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | 0.125" (3.18mm) |
| Contact Length - Post | 0.125" (3.18mm) |
| Overall Contact Length | 0.585" (14.86mm) |
| Insulation Height | 0.335" (8.51mm) |
| Contact Shape | Circular |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 20.0µin (0.51µm) |
| Contact Finish - Post | Nickel |
| Contact Material | - |
| Insulation Material | Polyester, Glass Filled |
| Features | - |
| Operating Temperature | -55°C ~ 125°C |
| Ingress Protection | - |
| Material Flammability Rating | - |
| Insulation Color | Black |
| Current Rating (Amps) | - |
| Voltage Rating | - |
Stock Status: 1028
Minimum: 1
Price: $5.02000
