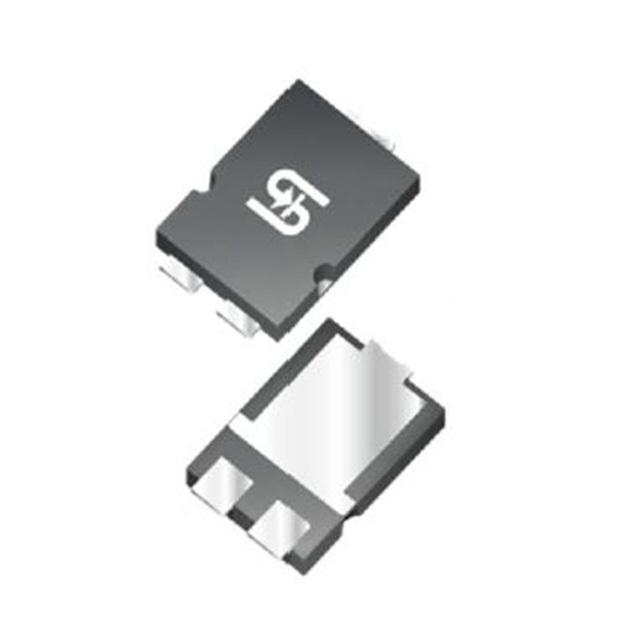

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | TSP15U120S S1G |
| Manufacturer: | TSC (Taiwan Semiconductor) |
| Part of Description: | DIODE SCHOTTKY 120V 15A TO277A |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 5662 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | - |
| Package | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® |
| Part Status | Active |
| Diode Type | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 120 V |
| Current - Average Rectified (Io) | 15A |
| Voltage - Forward (Vf) (Max) @ If | 750 mV @ 15 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - |
| Current - Reverse Leakage @ Vr | 250 µA @ 120 V |
| Capacitance @ Vr, F | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-277, 3-PowerDFN |
| Supplier Device Package | TO-277A (SMPC) |
| Operating Temperature - Junction | -55°C ~ 150°C |
Stock Status: 5662
Minimum: 1
Price: $0.89000
